SHAFT, Select: Removal: Removal

WARNING: This page is about a different car, the 2009 Jeep Patriot and 2009 Jeep Compass. However, it is still accessible from the selected car via links, so may be relevant.

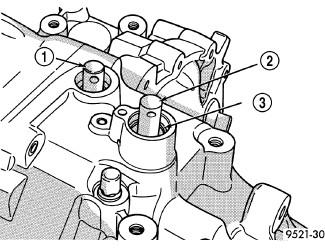

Fig 1: Crossover Shaft Snap Ring

Courtesy of CHRYSLER LLC

1 - SELECTOR SHAFT

2 - CROSSOVER SHAFT

3 - SNAP RING

Disassemble transaxle.
With the transaxle disassembled, remove the select shaft seal.
Using snap-ring pliers, remove the snap ring (3) at the select shaft bore. See Fig 1.
Push the select shaft (2) in the case and remove the select assembly.
