SEAL, Axle Drive Shaft: Installation: Installation

WARNING: This page is about a different car, the 2009 Jeep Patriot and 2009 Jeep Compass. However, it is still accessible from the selected car via links, so may be relevant.

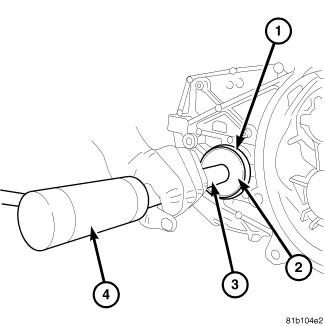

Fig 1: Aligning Axle Shaft Seal With Axle Shaft Seal Bore
GC0082608Courtesy of CHRYSLER LLC
  1. Clean axle shaft seal bore of any excess sealant.
  2. Align (bellhousing side) axle shaft seal with axle shaft seal bore.
  3. Install axle seal on Seal Installer 9928 and Handle C-4171 and insert into axle shaft seal bore.
  4. Tap seal into position until seated against transaxle case.

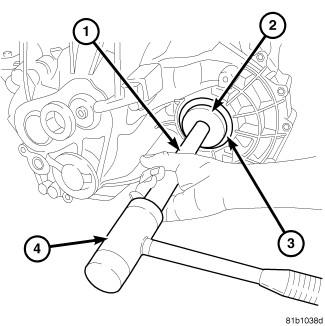

    Fig 2: Installing axle seal on Seal Installer 9934 And Handle C-4171
    GC0082607Courtesy of CHRYSLER LLC
  5. Align axle shaft seal with axle shaft seal bore.
  6. Install (case side) axle seal on Seal Installer 9934 and Handle C-4171 and insert into axle shaft seal bore.
  7. Tap seal into position until seated against transaxle case.
  8. Install axle shaft. Refer to Differential and Driveline/Half Shaft - Installation
  9. Check transaxle fluid level and adjust as necessary.
