MECHANISM, Gearshift: Installation: Installation

WARNING: This page is about a different car, the 2009 Jeep Patriot and 2009 Jeep Compass. However, it is still accessible from the selected car via links, so may be relevant.

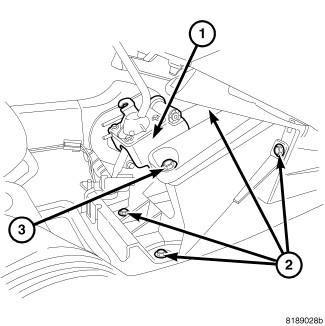

Fig 1: Shifter Assembly
GC0084441Courtesy of CHRYSLER LLC
  1. Install shifter assembly. (1) to riser. Install and tighten bolts (3) to 7 N.m (61 in. lbs.).

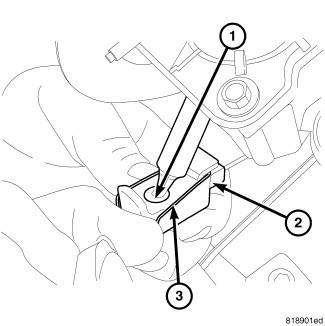

    Fig 2: Shifter Bracket With Clip
    GC0084440Courtesy of CHRYSLER LLC
  2. Install shift cable (2) to shifter lever (1) and secure cable to shifter bracket with clip (3).

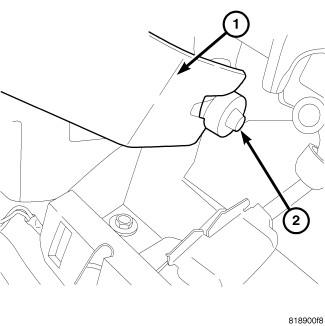

    Fig 3: Select Cable To Shifter Lever
    GC0084439Courtesy of CHRYSLER LLC
  3. Install select cable to shifter lever and secure cable to shifter bracket.
  4. Install center console assembly. Install rear power window switch (if equipped) and fasten harness to console (see CONSOLE, FLOOR ).
  5. Install gearshift boot.
  6. Verify that shift pattern is aligned properly.
