BUSHING(S), Shift Rail: Removal: Removal
WARNING: This page is about a different car, the 2009 Jeep Patriot and 2009 Jeep Compass. However, it is still accessible from the selected car via links, so may be relevant.

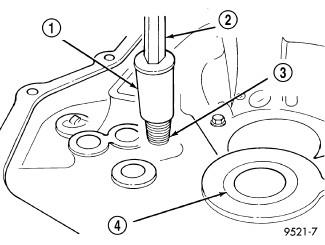

| 1 - REMOVER 6786 |
| 2 - SLIDE HAMMER C-3752 |
| 3 - SHIFTER RAIL BUSHING |
| 4 - INPUT BEARING |
- Thread Remover 6786 (1) into shift rail bushing. See Fig 1.
- Install slide hammer C-3752 (2) onto tool.
- Remove bushing (3) using slide hammer and tool assembly.
