Valve, Positive Crankcase Ventilation (PCV): Removal: Removal

WARNING: This page is about a different car, the 2009 Jeep Patriot and 2009 Jeep Compass. However, it is still accessible from the selected car via links, so may be relevant.

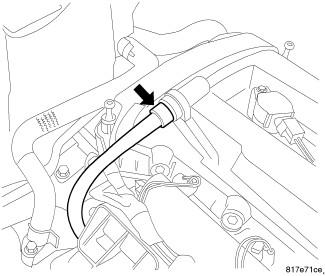

Fig 1: PCV INSTALLED
GC0084702Courtesy of CHRYSLER LLC
  1. Remove the engine cover.
    Fig 2: PCV HOSE REMOVED
    GC0082744Courtesy of CHRYSLER LLC
  2. Remove the hose from the PCV valve.
    Fig 3: PCV REMOVED
    GC0082745Courtesy of CHRYSLER LLC
  3. Unscrew the PCV valve.
