OUTLET, Power, AC: Removal: Removal

WARNING: This page is about a different car, the 2009 Jeep Patriot and 2009 Jeep Compass. However, it is still accessible from the selected car via links, so may be relevant.

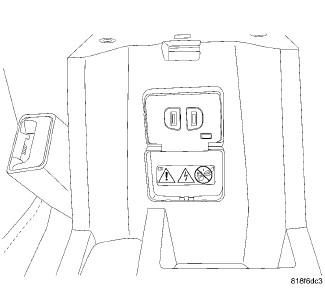

Fig 1: Removing/Installing Power Outlet - AC
GC0084058Courtesy of CHRYSLER LLC
  1. Disconnect and isolate the negative battery cable.
  2. Remove the center console. Refer to Body/Interior/CONSOLE, Floor - Removal .
  3. Disconnect electrical connector.
  4. Remove AC power outlet.
