Neutral POWERFLOW
WARNING: This page is about a different car, the 2009 Jeep Patriot and 2009 Jeep Compass. However, it is still accessible from the selected car via links, so may be relevant.

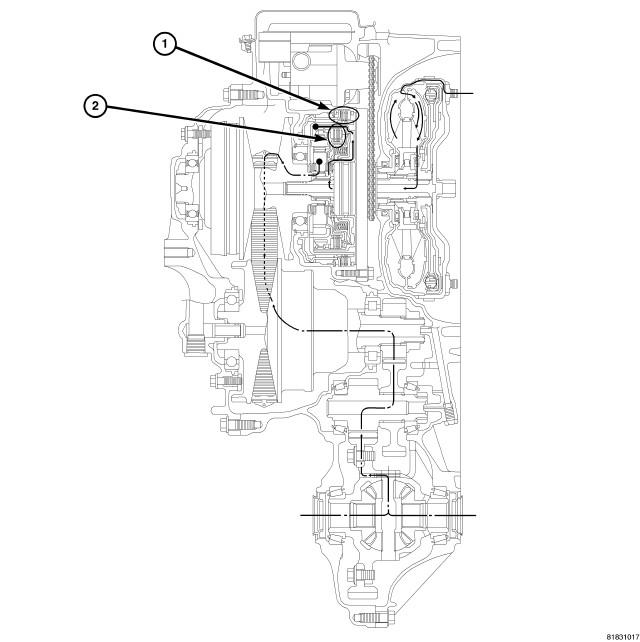

| 1 - REVERSE BRAKE (RELEASED) |
| 2 - FORWARD CLUTCH (RELEASED) |
When the forward clutch and the reverse brake are released, the driving force from the engine runs idly and is not transmitted to the primary pulley.
When the forward clutch and the reverse brake are released, the planetary carrier runs idly and the torque from the tires are not transmitted.
