CABLE, Shift Interlock: Removal: Removal

WARNING: This page is about a different car, the 2009 Jeep Patriot and 2009 Jeep Compass. However, it is still accessible from the selected car via links, so may be relevant.
  1. Disconnect the battery.

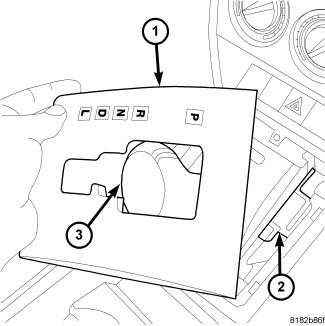

    Fig 1: Shifter Bezel
    GC0099067Courtesy of CHRYSLER LLC
  2. Remove the shifter bezel (1).

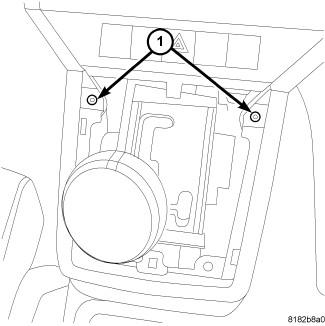

    Fig 2: Console Screws
    GC0084600Courtesy of CHRYSLER LLC
  3. Remove the screws (1) at the console.

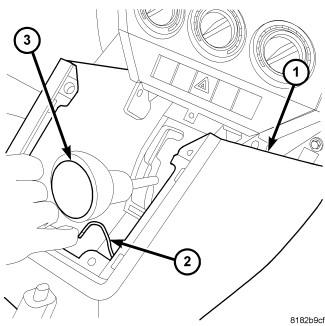

    Fig 3: Console
    GC0084601Courtesy of CHRYSLER LLC
  4. Pull the console (1) back and remove electrical connector (2) (if equipped).
  5. Remove the console (1).

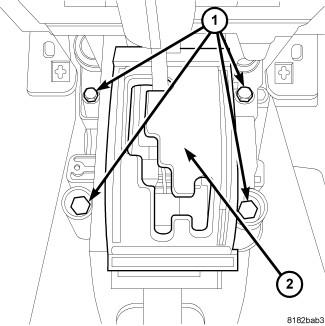

    Fig 4: Shifter Hold Down Bolts
    GC0084589Courtesy of CHRYSLER LLC
  6. Remove the bolts (1) at the shifter.
  7. Separate the shift interlock cable from the shifter.
  8. Remove lower shroud at steering column. Refer to Steering/Column/SHROUD, Steering Column - Removal .
    Fig 5: Shift Interlock Cable At Column
    GC0084368Courtesy of CHRYSLER LLC
  9. Place the ignition switch in the ON position.
  10. Depress the clip on the shift interlock cable (2) and pull cable out of column (1).
  11. Remove the cable.
