Diagnostic Test

WARNING: This page is about a different car, the 2009 Jeep Patriot and 2009 Jeep Compass. However, it is still accessible from the selected car via links, so may be relevant.

VERIFY DTC IS ACTIVE
1. Turn the ignition on.
2. With the scan tool, read and record ABS DTCs.
3. With the scan tool, read and record Environmental Data to help identify the conditions in which the DTC was set.
4. With the scan tool, erase ABS DTCs.
5. Cycle the ignition switch.
6. With the scan tool, read ABS DTCs.
  Does this DTC reset?

  Yes
  - Go to step 2
  No
  - The condition that caused the symptom is currently not present. Inspect the related wiring for a possible intermittent condition. Look for any chafed, pierced, pinched, or partially broken wires.
  - Perform ABS-INTERMITTENT CONDITION TEST. See DTC-Based Diagnostics/MODULE, Antilock Brake (ABS) - Standard Procedure .
INSPECT RELATED WIRING HARNESS, TERMINALS, AND CONNECTORS
1. Visually inspect the related wiring harness. Look for any pinched, chafed, pierced, and partially broken wires.
2. Visually inspect the related wiring harness connectors. Look for broken, bent, pushed out, and corroded terminals.
  Were any problems found?

  Yes
  - Repair as necessary.
  - Perform ABS VERIFICATION TEST. See DTC-Based Diagnostics/MODULE, Antilock Brake (ABS) - Standard Procedure .
  No
  - Go to step 3
CHECK THE (D465) DYNAMICS SENSOR HIGH DATA LINK CIRCUIT FOR A SHORT TO VOLTAGE

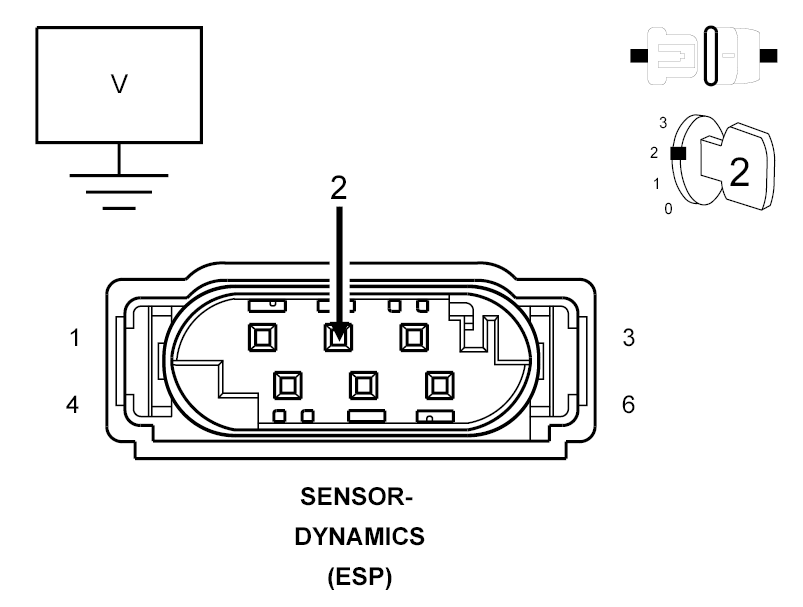

Fig 1: CHECKING DYNAMICS SENSOR HIGH DATA LINK CIRCUIT FOR SHORT TO VOLTAGE
Courtesy of CHRYSLER LLC
1. Disconnect the Anti-Lock Brake Module harness connector.
2. Disconnect the Dynamics Sensor harness connector.
3. Turn the ignition on.
4. Measure the voltage of the (D465) Dynamics Sensor High Data Link circuit.
  Is there any voltage present?

  Yes
  - Repair the (D465) Dynamics Sensor High Data Link circuit for a short to voltage.
  - Perform ABS VERIFICATION TEST. See DTC-Based Diagnostics/MODULE, Antilock Brake (ABS) - Standard Procedure .
  No
  - Go to step 4
CHECK THE (D465) DYNAMICS SENSOR HIGH DATA LINK CIRCUIT FOR A SHORT TO GROUND

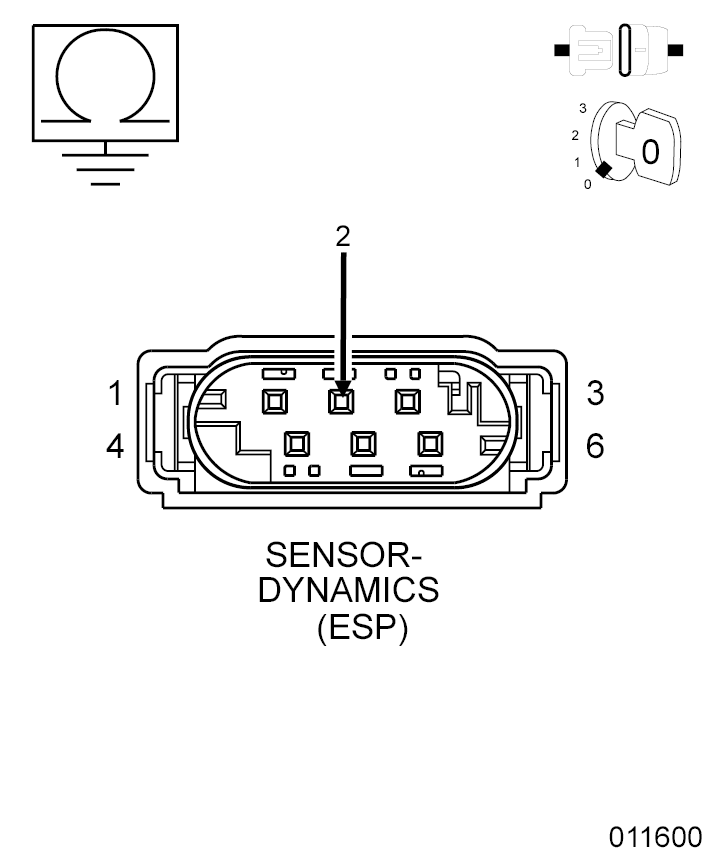

Fig 2: CHECKING DYNAMICS SENSOR HIGH DATA LINK CIRCUIT FOR SHORT TO GROUND
Courtesy of CHRYSLER LLC
1. Turn the ignition off.
2. Measure the resistance of the (D465) Dynamics Sensor High Data Link circuit between ground and the Dynamics Sensor harness connector.
  Is the resistance below 5.0 ohms?

  Yes
  - Repair the (D465) Dynamics Sensor High Data Link circuit for a short to ground.
  - Perform ABS VERIFICATION TEST. See DTC-Based Diagnostics/MODULE, Antilock Brake (ABS) - Standard Procedure .
  No
  - Go to step 5
CHECK THE (D465) DYNAMICS SENSOR HIGH DATA LINK CIRCUIT FOR AN OPEN

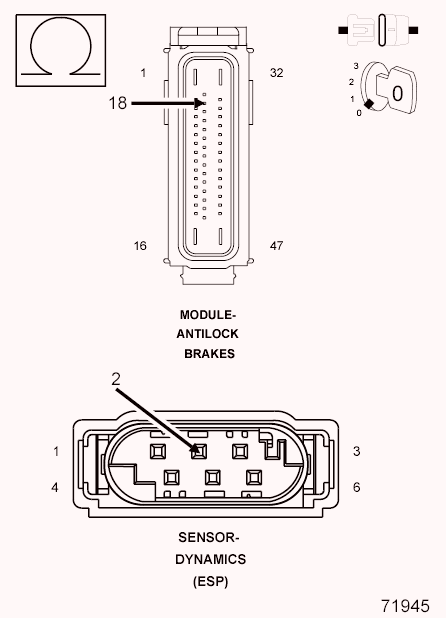

Fig 3: CHECKING DYNAMICS SENSOR HIGH DATA LINK CIRCUIT FOR OPEN
Courtesy of CHRYSLER LLC
1. Measure the resistance of the (D465) Dynamics Sensor High Data Link circuit between the Dynamics Sensor harness connector and the Anti-Lock Brake Module harness connector.
  Is the resistance below 5.0 ohms?

  Yes
  - Go to step 6
  No
  - Repair the (D465) Dynamics Sensor High Data Link circuit for an open.
  - Perform ABS VERIFICATION TEST. See DTC-Based Diagnostics/MODULE, Antilock Brake (ABS) - Standard Procedure .
CHECK THE (D464) DYNAMICS SENSOR LOW DATA LINK CIRCUIT FOR A SHORT TO VOLTAGE

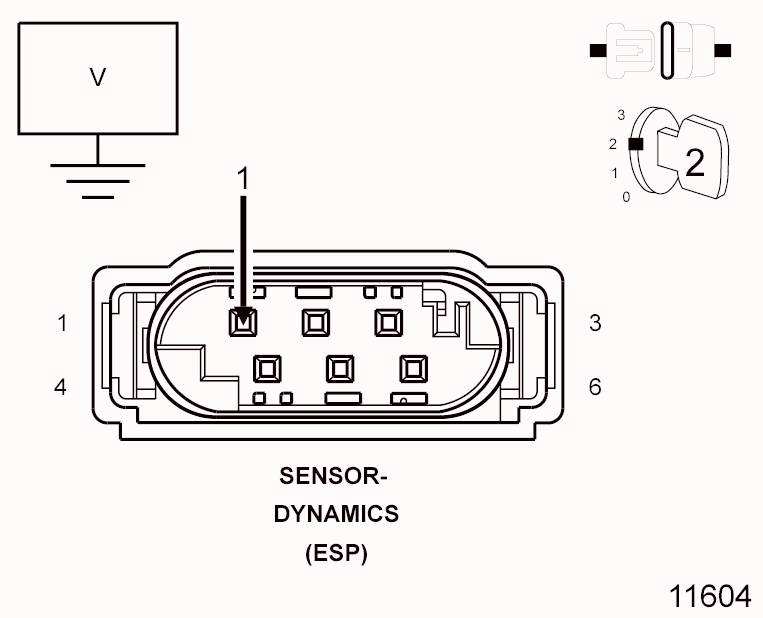

Fig 4: CHECKING DYNAMICS SENSOR LOW DATA LINK CIRCUIT FOR SHORT TO VOLTAGE
Courtesy of CHRYSLER LLC
1. Turn the ignition on.
2. Measure the voltage of the (D464) Dynamics Sensor Low Data Link circuit.
  Is there any voltage present?

  Yes
  - Repair the (D464) Dynamics Sensor Low Data Link circuit for a short to voltage.
  - Perform ABS VERIFICATION TEST. See DTC-Based Diagnostics/MODULE, Antilock Brake (ABS) - Standard Procedure .
  No
  - Go to step 7
CHECK THE (D464) DYNAMICS SENSOR LOW DATA LINK CIRCUIT FOR A SHORT TO GROUND

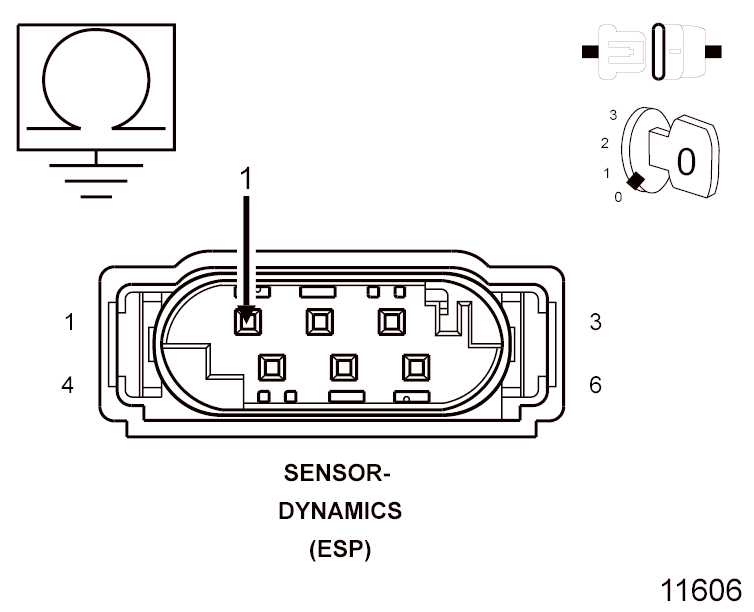

Fig 5: CHECKING DYNAMICS SENSOR LOW DATA LINK CIRCUIT FOR SHORT TO GROUND
Courtesy of CHRYSLER LLC
1. Turn the ignition off.
2. Measure the resistance of the (D464) Dynamics Sensor Low Data Link circuit between ground and the Dynamics Sensor harness connector.
  Is the resistance below 5.0 ohms?

  Yes
  - Repair the (D464) Dynamics Sensor Low Data Link circuit for a short to ground.
  - Perform ABS VERIFICATION TEST. See DTC-Based Diagnostics/MODULE, Antilock Brake (ABS) - Standard Procedure .
  No
  - Go to step 8
CHECK THE (D464) DYNAMICS SENSOR LOW DATA LINK CIRCUIT FOR AN OPEN

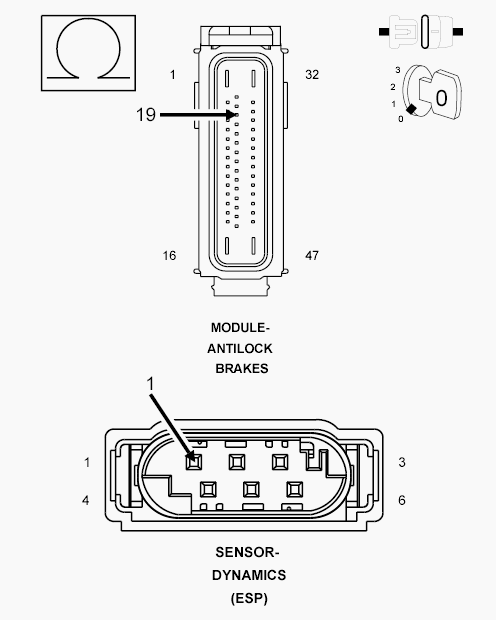

Fig 6: CHECKING DYNAMICS SENSOR LOW DATA LINK CIRCUIT FOR OPEN
Courtesy of CHRYSLER LLC
1. Measure the resistance of the (D464) Dynamics Sensor Low Data Link circuit between the Dynamics Sensor harness connector and the Anti-Lock Brake Module harness connector.
  Is the resistance below 5.0 ohms?

  Yes
  - Go to step 9
  No
  - Repair the (D464) Dynamics Sensor Low Data Link circuit for an open.
  - Perform ABS VERIFICATION TEST. See DTC-Based Diagnostics/MODULE, Antilock Brake (ABS) - Standard Procedure .
REPLACE DYNAMICS SENSOR AND VERIFY IF DTC IS STILL ACTIVE
1. Replace the Dynamics Sensor in accordance with the Service Information. Perform ABS VERIFICATION TEST. See DTC-Based Diagnostics/MODULE, Antilock Brake (ABS) - Standard Procedure .
2. Turn the ignition on.
3. With the scan tool, erase ABS DTCs.
4. Cycle the ignition switch.
  WARNING: Make sure brake capability is available before road testing.
5. Test drive the vehicle by turning the vehicle left or right in a curving manner at a velocity between 6 and 15 mph (10 and 25 km/h).
6. Park the vehicle.
7. With the scan tool, read ABS DTCs.
  Does this DTC reset?

  Yes
  - Replace the Anti-Lock Brake Module in accordance with the Service Information.
  - Perform ABS VERIFICATION TEST. See DTC-Based Diagnostics/MODULE, Antilock Brake (ABS) - Standard Procedure .
  No
  - Test complete.
