RESERVOIR, Windshield Washer: Removal: Removal

WARNING: This page is about a different car, the 2009 Jeep Patriot and 2009 Jeep Compass. However, it is still accessible from the selected car via links, so may be relevant.

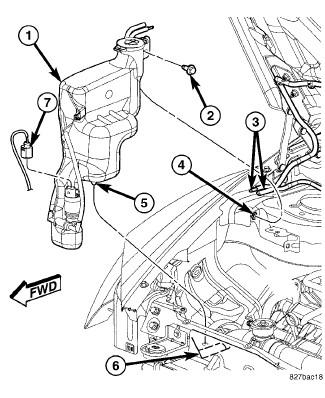

Fig 1: Remove/Install Windshield Washer Reservoir
GC0098563Courtesy of CHRYSLER LLC
  1. Disconnect and isolate the negative battery cable.
  2. Remove or disengage each of the fasteners that secure the coolant reserve container (gasoline engine) or the coolant pressure container (diesel engine) to the inboard side of the washer reservoir and move the container aside as necessary to gain access to the washer reservoir for removal. Refer to COOLING for the appropriate procedures for the engine and coolant container type as the vehicle is equipped.
  3. Siphon the washer fluid from the washer reservoir (1) into a clean container for reuse.
  4. Disconnect the engine compartment wire harness connector (7) from the washer pump/motor.
    NOTE: To aid in reinstallation, note the installed position of the washer hoses prior to disconnecting them.
  5. Disconnect the front and rear washer hoses (3) from the reservoir washer hoses near the top of the right front strut tower.
  6. On vehicles equipped with a diesel engine, it may be necessary to remove the screw securing the differential pressure sensor to the bracket on the front of the strut tower and move the sensor aside for access to the washer reservoir filler neck screw. Refer to SENSOR, EXHAUST PRESSURE Differential Pressure for the appropriate procedures.
  7. Remove the screw (2) that secures the mounting tab on the back of the reservoir filler neck to the bracket (4) on the forward side of the right front strut tower.
  8. On vehicles equipped with the headlamp leveling system, it may be necessary to dismount and pull the right headlamp unit forward far enough for the front of the washer reservoir to clear the headlamp leveling motor during reservoir removal. Refer to Electrical/Lamps/Lighting - Exterior/UNIT, Headlamp - Removal .
  9. Pull the washer reservoir upward far enough to disengage the post (5) on the underside of the reservoir from the hole in the horizontal extension of the right front wheel house (6).
  10. Remove the washer reservoir from the engine compartment.
