Cooler, EGR: Installation: Installation
WARNING: This page is about a different car, the 2009 Jeep Patriot and 2009 Jeep Compass. However, it is still accessible from the selected car via links, so may be relevant.

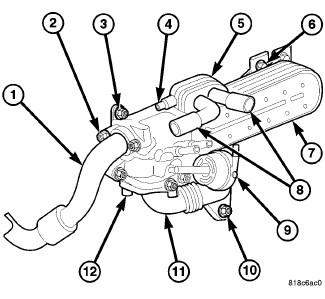

| 1 - EGR COOLER TO EGR VALVE TUBE |
| 2 - MOUNTING SCREWS |
| 3 - EGR COOLER MOUNTING SCREW |
| 4 - MOUNTING SCREW |
| 5 - EGR COOLER BODY |
| 6 - EGR COOLER MOUNTING NUT |
| 7 - EGR COOLER |
| 8 - INLET TUBES |
| 9 - VACUUM CONTROL UNIT |
| 10 -EGR COOLER TO EXHAUST MANIFOLD TUBE MOUNTING NUT |
| 11 - EGR COOLER TO EXHAUST MANIFOLD TUBE |
| 12 - MOUNTING SCREW |
- Using a new gasket, position the bypass valve assembly to the EGR cooler body (5). Tighten screws to 10 N.m (88 in. lbs.).
- Position EGR cooler (7) and install mounting screws. Tighten to 10 N.m (88 in. lbs.).
- Install EGR cooler to exhaust manifold tube (11). Tighten bolts to 20 N.m (14 ft. lbs.) and nuts to 20 N.m (14 ft. lbs.).
- Install EGR cooler to EGR valve tube (1). Tighten bolts to 20 N.m (14 ft. lbs.).
- Install coolant hoses.
- Install vacuum line.
- Fill cooling system. See Standard Procedure .
- Install engine cover. Refer to (09 - Engine - Installation) .
