Special Tools

WARNING: This page is about a different car, the 2009 Jeep Patriot and 2009 Jeep Compass. However, it is still accessible from the selected car via links, so may be relevant.

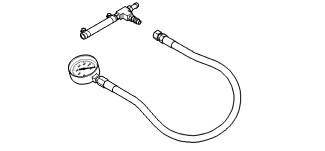

Fig 1: KIT, FUEL PRESSURE - C-4799-B

Courtesy of CHRYSLER LLC

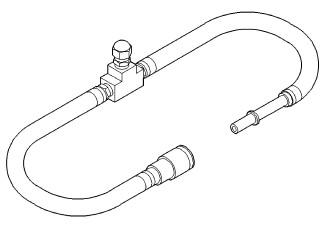

Fig 2: ADAPTER, FUEL PRESSURE - 6539

Courtesy of CHRYSLER LLC

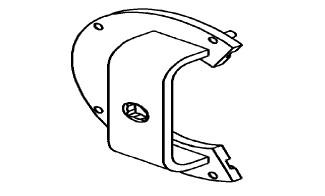

Fig 3: WRENCH, FUEL PUMP LOCK RING - 9318

Courtesy of CHRYSLER LLC

Fig 4: SAE FUEL PUMP LOCK RING WRENCH - 9340

Courtesy of CHRYSLER LLC

Fig 5: ADAPTER, FUEL PRESSURE - 6668

Courtesy of CHRYSLER LLC

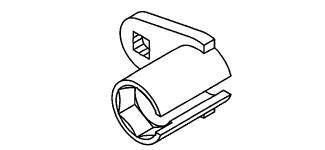

Fig 6: OXYGEN SENSOR SOCKET - C-4907

Courtesy of CHRYSLER LLC

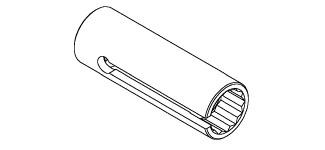

Fig 7: O2 SENSOR WRENCH - 8439

Courtesy of CHRYSLER LLC
