Panel, B-Pillar Trim, Lower: Removal: Removal
WARNING: This page is about a different car, the 2009 Jeep Patriot and 2009 Jeep Compass. However, it is still accessible from the selected car via links, so may be relevant.
- Adjust the front seat to its most forward position for easiest access to the front seat belt lower anchor cover (1) and the B-pillar trim.
- Grasp the upper edge of the lower anchor cover and pull upward to unsnap it from the front seat cushion outboard side shield (4).
- Remove the screw (2) that secures the seat belt (3) lower anchor to the outboard side of the front seat cushion frame.

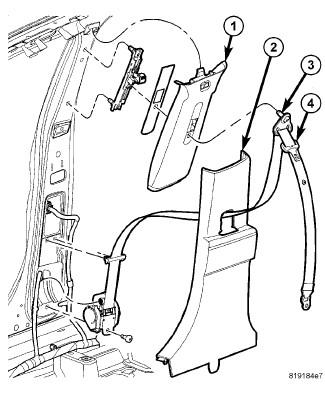

- Remove the screw (3) that secures the seat belt turning loop to the height adjuster on the upper B-pillar.
- Remove the seat belt turning loop from the height adjuster.
- Release the upper retaining clips and separate the lower B-pillar trim (2) from the pillar, pull seat belt (4) through the hole and remove.
