Housing, Shifter: Removal: Removal

WARNING: This page is about a different car, the 2009 Jeep Patriot and 2009 Jeep Compass. However, it is still accessible from the selected car via links, so may be relevant.

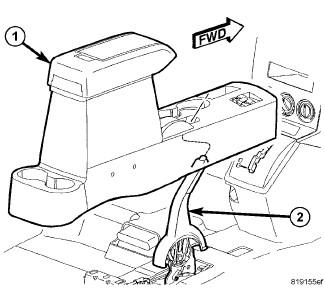

Fig 1: Floor Console

Courtesy of CHRYSLER LLC

Remove the floor console (1). See Body/Interior/CONSOLE, Floor - Removal .

Fig 2: Shifter Knob & Shifter Console Bezel
Courtesy of CHRYSLER LLC
Remove the shift bezels (2). See Body/Interior/BEZEL, Shifter - Removal .

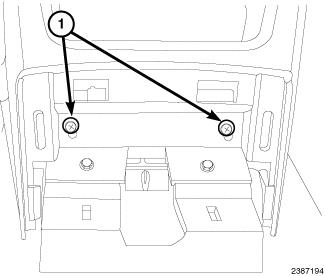

Fig 3: Shifter Housing Lower Screws
Courtesy of CHRYSLER LLC
Remove the shifter housing lower screws (1).

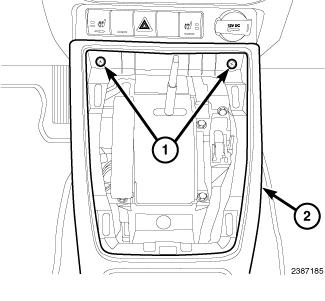

Fig 4: Shifter Housing Upper Screws & Shifter Housing
Courtesy of CHRYSLER LLC
Remove the shifter housing upper screws (1) and remove the shifter housing (2).
