Liftgate Panel: Patriot

WARNING: This page is about a different car, the 2009 Jeep Patriot and 2009 Jeep Compass. However, it is still accessible from the selected car via links, so may be relevant.

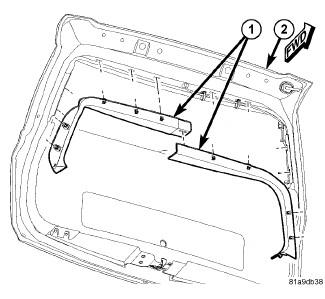

Fig 1: Side Trim Panels
GC0099123Courtesy of CHRYSLER LLC
  1. Using a trim stick C-4755 or equivalent, separate the clip fasteners and remove the side trim panels (1).
