Liftgate Panel: Notes

WARNING: This page is about a different car, the 2009 Jeep Patriot and 2009 Jeep Compass. However, it is still accessible from the selected car via links, so may be relevant.

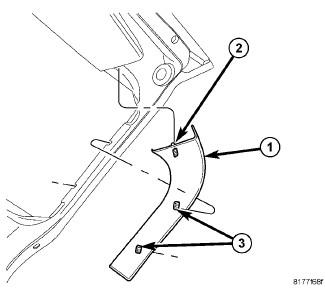

Fig 1: Liftgate Upper Side Trim
GC0099122Courtesy of CHRYSLER LLC
NOTE: Caliber shown, Compass similar.
  1. Using a trim stick C-4755 or equivalent, separate the clip fasteners (2 and 3) and remove the side trim panels (1).
