Bulb - Position Lamp
WARNING: This page is about a different car, the 2009 Jeep Patriot and 2009 Jeep Compass. However, it is still accessible from the selected car via links, so may be relevant.
NOTE:
The following procedure applies only to vehicles manufactured for export markets. Vehicles manufactured for domestic markets do not have a position lamp bulb, socket or wiring provided in the headlamp unit.
- Disconnect and isolate the battery negative cable.

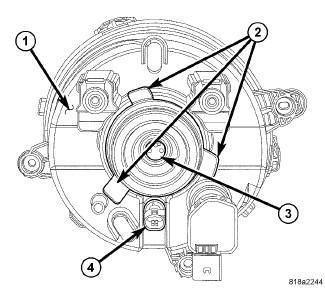

- Disconnect the engine compartment wire harness connector from the position lamp bulb socket (4) on the back of the headlamp unit housing (1) near the bottom.
- Firmly grasp the position lamp socket and rotate it counterclockwise about 30 degrees to unlock it.
- Pull the socket and bulb straight out from the keyed opening in the housing.
- Pull the base of the bulb straight out of the socket.
