Bulb - Headlamp - Domestic
WARNING: This page is about a different car, the 2009 Jeep Patriot and 2009 Jeep Compass. However, it is still accessible from the selected car via links, so may be relevant.
CAUTION:
Do not contaminate the bulb glass by touching it with your fingers or by allowing it to contact other oily surfaces. Shortened bulb life will result.
- Disconnect and isolate the battery negative cable.

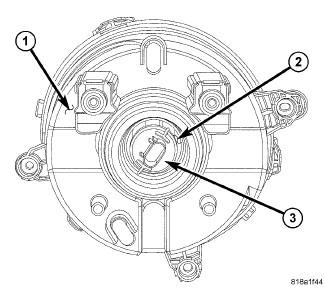

- Disconnect the engine compartment wire harness connector from the connector receptacle integral to the headlamp bulb base (3) on the back of the headlamp unit housing (1).
- Using the tabs on each side of the connector receptacle, firmly grasp the bulb base and rotate it counterclockwise about 30 degrees to unlock it.
- Pull the bulb and base straight out from the keyed opening in the headlamp reflector (2).
