Fog Lamp Alignment
WARNING: This page is about a different car, the 2009 Jeep Patriot and 2009 Jeep Compass. However, it is still accessible from the selected car via links, so may be relevant.
NOTE:
A properly aimed front fog lamp will project a pattern on the alignment screen 100 millimeters (4 inches) below the fog lamp centerline and straight ahead of the lamp.
- Turn the fog lamps ON.

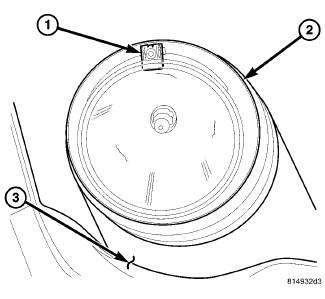

- Insert a screwdriver through the clearance notch (1) at the top of the front fog lamp (2) seat of the front fascia (3) to rotate the vertical adjustment screw on each lamp to adjust the beam height as required.
