NOTE:

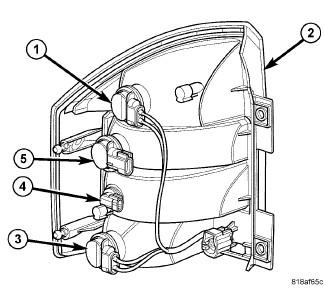

The rear lamp unit (2) contains four bulbs. They are: backup (4), park/stop/rear side marker (1), rear fog (3) and turn signal (5). The service procedures for each bulb are the same, only the bulb sizes and types may differ.
- Disconnect and isolate the battery negative cable.
- Remove the rear lamp unit (2) from the end of the quarter panel. See Removal .
- Firmly grasp the appropriate bulb socket (1, 3, 4 or 5) on the back of the rear lamp unit housing and rotate it counterclockwise about 30 degrees to unlock it.
- Pull the socket and bulb straight out from the keyed opening in the housing.
- Pull the base of the bulb straight out of the socket.

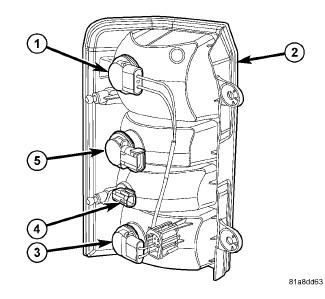

- The procedure for the Patriot is the same as the Compass.
