Bulb - Domestic

WARNING: This page is about a different car, the 2009 Jeep Patriot and 2009 Jeep Compass. However, it is still accessible from the selected car via links, so may be relevant.

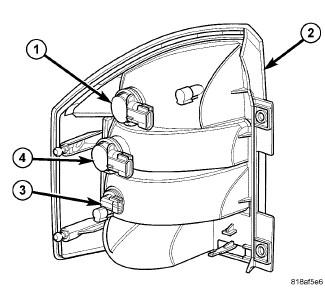

Fig 1: Park/Stop/Rear Side Marker And Turn Signal
GC0084757Courtesy of CHRYSLER LLC
NOTE: The rear lamp unit (2) contains three bulbs. They are: backup (3), park/stop/rear side marker (1), and turn signal (4). The service procedures for each bulb are the same, only the bulb sizes and types may differ.
  1. Disconnect and isolate the battery negative cable.
  2. Remove the rear lamp unit (2) from the end of the quarter panel. See Removal  .
  3. Firmly grasp the appropriate bulb socket (1, 3 or 4) on the back of the rear lamp unit housing and rotate it counterclockwise about 30 degrees to unlock it.
  4. Pull the socket and bulb straight out from the keyed opening in the housing.
  5. Pull the base of the bulb straight out of the socket.

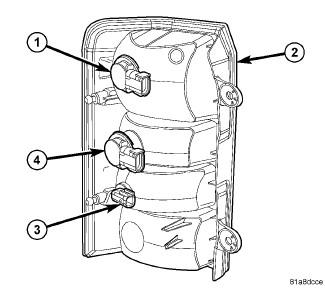

    Fig 2: Tail Stop Turn Lamp
    GC0084758Courtesy of CHRYSLER LLC
  6. The procedure for the Patriot is the same as the Compass.
