LAMP, Park and Turn Signal: Installation: Bulb
WARNING: This page is about a different car, the 2009 Jeep Patriot and 2009 Jeep Compass. However, it is still accessible from the selected car via links, so may be relevant.
CAUTION:
Always use the correct bulb size and type for replacement. An incorrect bulb size or type may overheat and cause damage to the lamp, the socket or the lamp wiring.

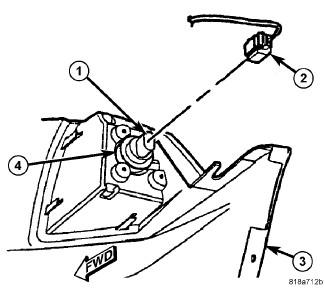

- Align the base of the bulb with the park/turn signal lamp socket (1).
- Push the bulb straight into the socket until the base is firmly seated.
- Align the socket and bulb with the keyed opening on the back of the park/turn signal lamp housing (4).
- Insert the socket and bulb into the housing until the socket is firmly seated.
- Rotate the socket clockwise about 30 degrees to lock it into place.
- Reconnect the engine compartment wire harness connector (2) to the bulb socket connector receptacle.
- Position the front of the front wheel house splash shield (4) to the front fascia (2) closure panel and secure it with two push pin fasteners (3).
- Install the push pin fastener (3) that secures the inboard side of the splash shield to the front end sheet metal.
- Install and tighten the three screws (1) that secure the outboard side of the splash shield to the front fascia. Tighten the screws to 2 N.m (19 in. lbs.).
- Reconnect the battery negative cable.
