LAMP, Fog, Front: Removal: Lamp
WARNING: This page is about a different car, the 2009 Jeep Patriot and 2009 Jeep Compass. However, it is still accessible from the selected car via links, so may be relevant.
- Disconnect and isolate the battery negative cable.
- Raise and support the vehicle.
- Remove the front wheel and tire on the same side of the vehicle as the fog lamp being serviced. Refer to Tires and Wheels - Removal .
- Remove the three screws (1) that secure the outboard side of the front wheel house splash shield (4) to the front fascia (2).
- Remove the push pin fastener (3) that secures the inboard side of the splash shield to the front end sheet metal.
- Remove the two push pin fasteners that secure the forward edge of the splash shield to the front fascia closure panel.
- Fold the front of the splash shield rearward far enough to access the back of the front fascia.

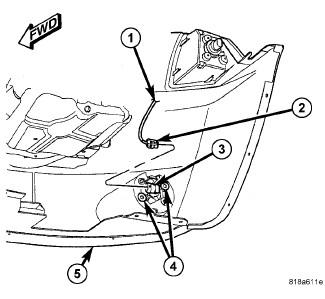

- Disconnect the engine compartment wire harness (1) connector (2) from the front fog lamp bulb (3) connector receptacle.
- Remove the two screws (4) that secure the lamp to the back of the front fascia (5).
- Remove the lamp from the seat in the face of the fascia.
