LAMP, Center High Mounted Stop: Removal: Compass

WARNING: This page is about a different car, the 2009 Jeep Patriot and 2009 Jeep Compass. However, it is still accessible from the selected car via links, so may be relevant.

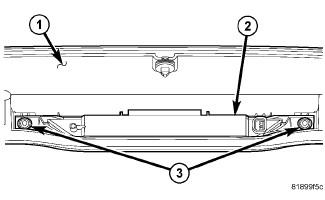

Fig 1: Center High Mounted Stop Lamp Replacement
GC0084742Courtesy of CHRYSLER LLC
  1. Disconnect and isolate the battery negative cable.
  2. Remove the spoiler assembly (1) from the top of the outer liftgate panel. Refer to Body/Exterior/SPOILER - Removal .
  3. Remove the two screws (3) that secure the Center High Mounted Stop Lamp (CHMSL) (2) to the back of the liftgate spoiler.
  4. Remove the CHMSL from the back of the liftgate spoiler.
