Driver Side

WARNING: This page is about a different car, the 2009 Jeep Patriot and 2009 Jeep Compass. However, it is still accessible from the selected car via links, so may be relevant.
NOTE: The inner driver side demister duct is serviced only as an assembly with the driver side instrument panel duct.

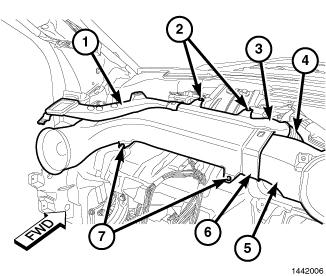

Fig 1: Instrument Panel Duct
GC0099168Courtesy of CHRYSLER LLC
  1. Remove the upper and lower instrument panel covers. Refer to Body/Instrument Panel/COVER, Instrument Panel - Removal .
  2. Remove the four screws (2 and 7) that secure the driver side demister duct (3) and the instrument panel duct (6) to the instrument panel support.
  3. Disconnect the driver side demister hose (4) from the demister duct.
  4. Disconnect the driver side instrument panel duct from the passenger side instrument panel duct (5).
  5. Remove the instrument panel and demister duct assembly from the instrument panel support.
  6. If required, disconnect the outer demister duct (1) from the driver side demister duct.
