Drain And Fill

WARNING: This page is about a different car, the 2009 Jeep Patriot and 2009 Jeep Compass. However, it is still accessible from the selected car via links, so may be relevant.

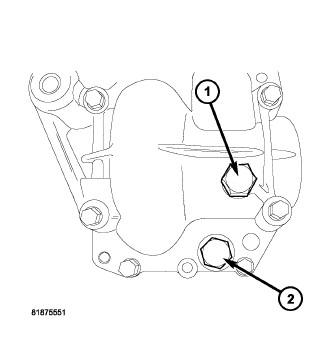

Fig 1: Drain & Fill Plugs
GC0098399Courtesy of CHRYSLER LLC
  1. Remove fill plug (1) and drain plug (2). Drain fluid.
  2. Install drain plug (2) and tighten to 32 N.m (24 ft.lb.).
  3. Fill with MOPAR® MS9020 SAE 80W90 Gear Lube to bottom of fill plug.
  4. Install fill plug (1) and tighten to 32 N.m (24 ft.lb.).
