Vehicle Preparation
WARNING: This page is about a different car, the 2009 Jeep Patriot and 2009 Jeep Compass. However, it is still accessible from the selected car via links, so may be relevant.
Position the vehicle on a level work surface. Using screw or bottle jacks, adjust the vehicle PLP heights to the specified dimension above a level work surface. Vertical dimensions can be taken from the work surface to the locations indicated were applicable.
INDEX
| DESCRIPTION | FIGURE |
|---|---|
| COMPASS AND PATRIOT | |

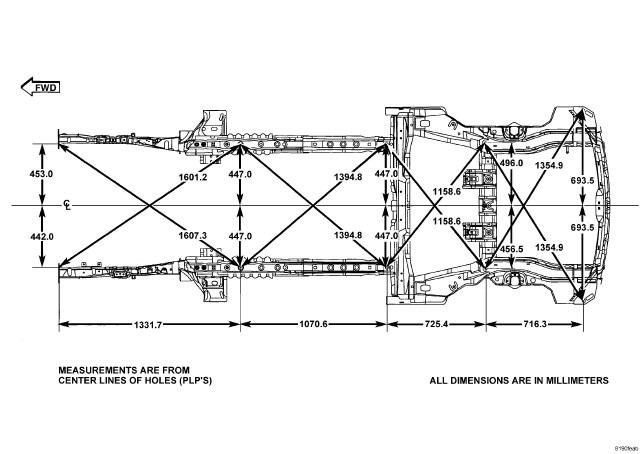

| FRAME DIMENSIONS - PLAN VIEW | Figure |

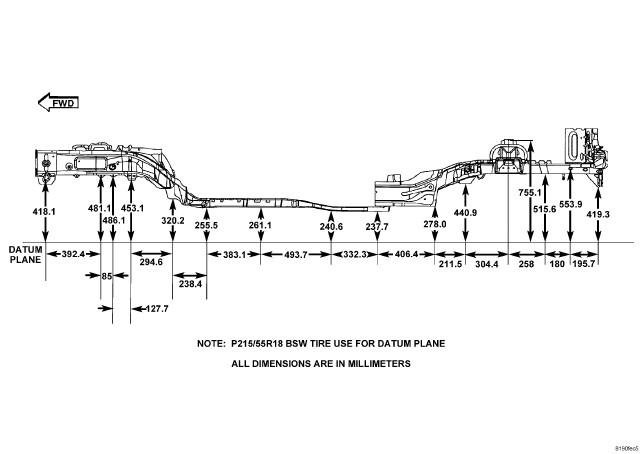

| FRAME DIMENSIONS - SIDE VIEW | Figure |
