Exhaust Pressure Sensor-Installation

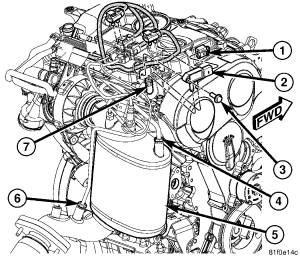

Fig 1: Pressure Differential Sensor - 2.0L Diesel

Courtesy of CHRYSLER LLC

1 - ELECTRICAL CONNECTOR

2 - PRESSURE DIFFERENTIAL SENSOR

3 - MOUNTING BOLT

4 - UPSTREAM PRESSURE TUBE

5 - DPF

6 - DOWNSTREAM PRESSURE TUBE

7 - TUBING

Install tubing on pressure differential sensor.
Position pressure differential sensor and tubing.
Install pressure differential senor mounting bolt. Tighten to 10 N.m (89 in. lbs.).
Install downstream pressure tube into catalytic converter. Tighten fitting to 10 N.m (89 in. lbs.).
Install upstream pressure tube into catalytic converter. Tight fitting to 10 N.m (89 in. lbs.)
Position electrical connectors into bracket.
Connect negative battery cable.
