Engine Oil Pressure Sensor/Switch - Installation

INSTALLATION





NOTE: If the oil pressure sensor is removed, it must be replaced with a new sensor.

CAUTION: The oil pressure sensor has tapered threads, over tightening could crack the engine block.

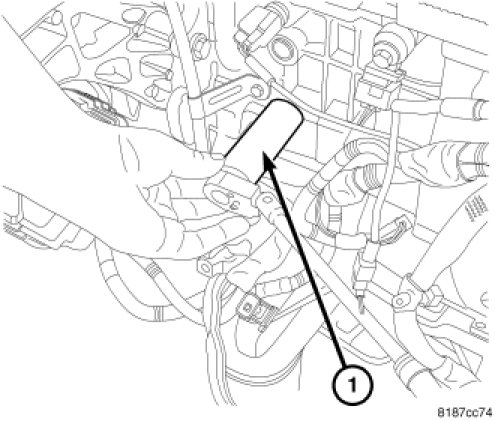

1. Install oil pressure sensor using oil pressure socket C-4597 (1) and tighten to 8 Nm (71 in. lbs.).
2. Connect electrical connector.
