Removal

REMOVAL

1. Disconnect and isolate the battery negative cable from the battery post.
2. Remove the shifter housing center console. Floor Console - Removal

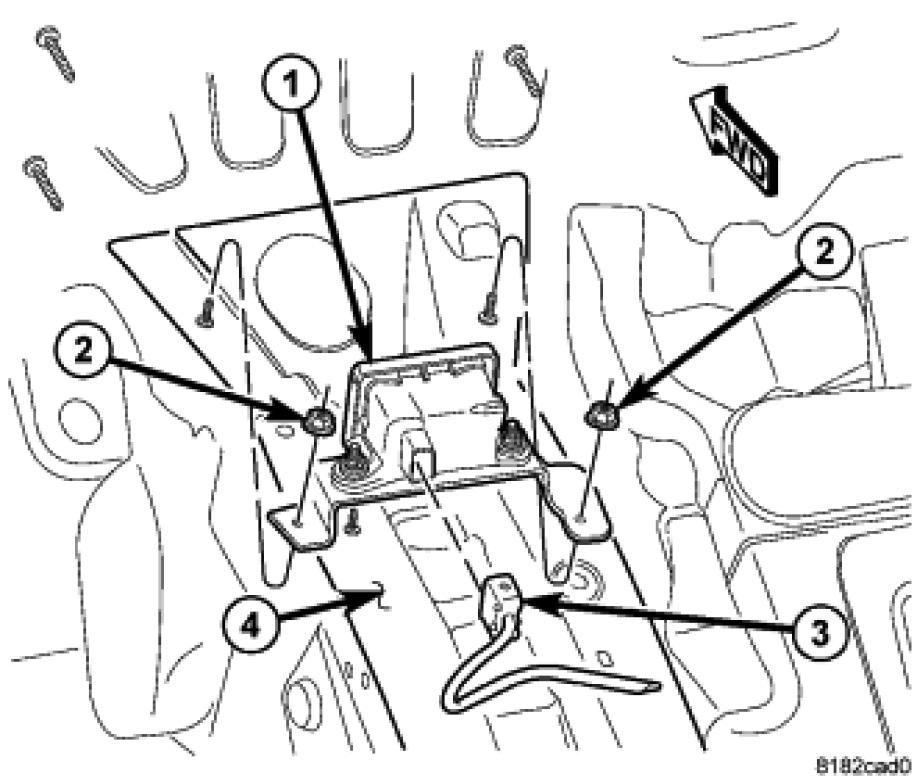

3. Disconnect the wiring harness connector (3) at the dynamics sensor (1).
4. Remove the nuts (2) mounting the dynamics sensor to the floor pan tunnel (4).
5. Remove the dynamics sensor (1).
