Vapor Canister - Removal

REMOVAL





1. Disconnect negative battery cable.
2. Raise and support vehicle.

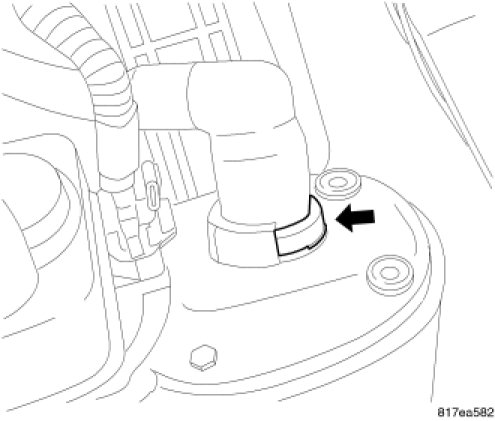

3. Depress locking tab on vapor hose connector and pull off of canister.




4. Remove hose from ESIM module.

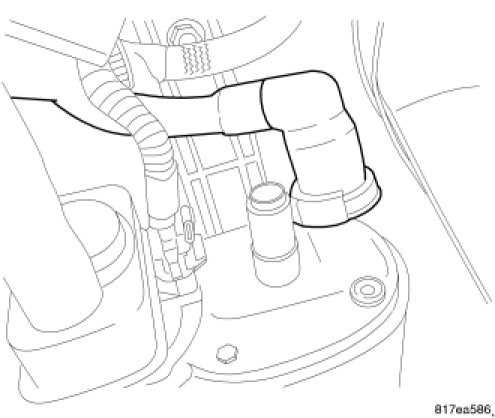

5. Vapor hose removed.

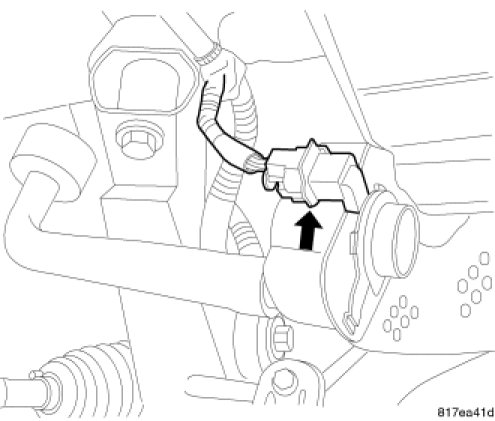

6. Disconnect the electrical connector from ESIM module.




7. Remove two vapor canister mounting bolts.

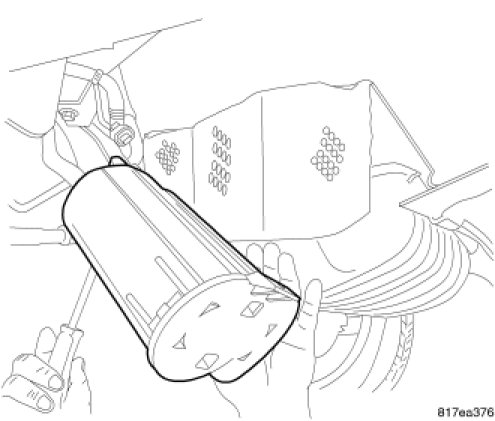

8. Remove assembly.
