Coolant Recovery Container - Removal

GAS ENGINE

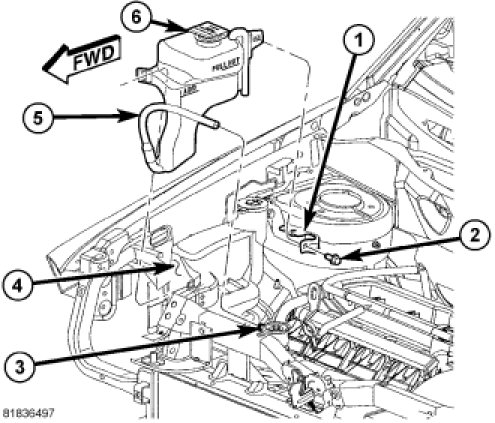

1. Siphon coolant from coolant recovery container.
2. Remove return hose (5) from upper radiator hose tee (3).
3. Remove coolant recovery bottle mount bolt (2).
4. Disengage coolant recovery container (6) from washer reservoir bottle (4).
5. Remove coolant recovery container and drain.
