Console Shifter Bezel - Installation

INSTALLATION

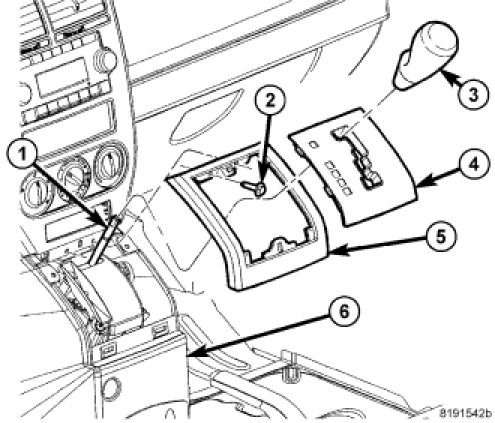

Automatic





1. Install the trim ring (5) onto the shifter console (6) and seat fully.
2. Install the screws (2).
3. Install the bezel (4) onto the trim ring (5) and seat fully.
4. Install the shift knob (3) onto the shifter (1) and seat fully.

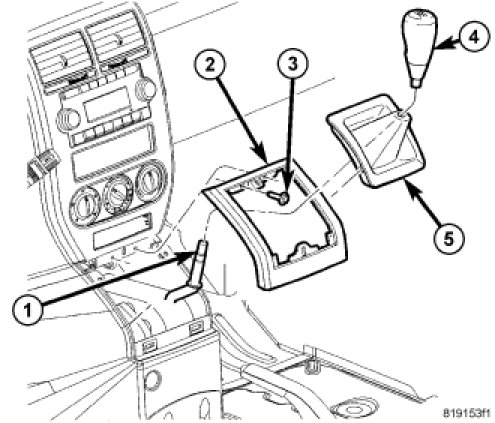

Manual





1. Install the trim ring (2) onto the shifter console and seat fully.
2. Install the screws (3).
3. Install the shift boot (5) onto the trim ring (2) and seat fully.
4. Install the shift knob (4) onto the shifter (1) and seat fully.
