Center Console Shifter Housing - Removal

REMOVAL

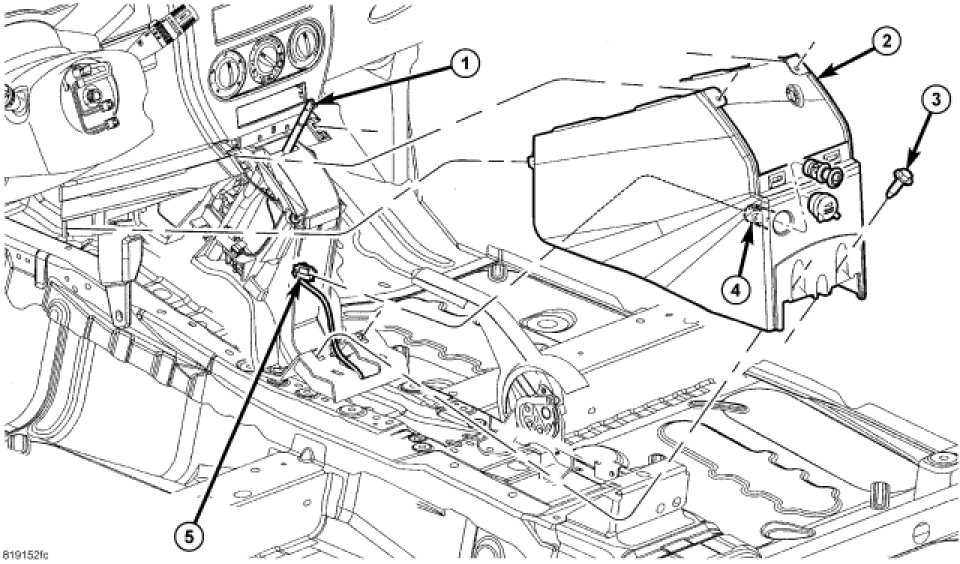

1. Remove the floor console (1), Floor Console - Removal.




2. Remove the shift bezels (5), Console Shifter Bezel - Removal.




3. Remove the screws (3) and separate the shifter console cover (2).
4. Disconnect the electrical connector (4 and 5) and remove the cover.
