Removal

REMOVAL

1. Lift vehicle on hoist.

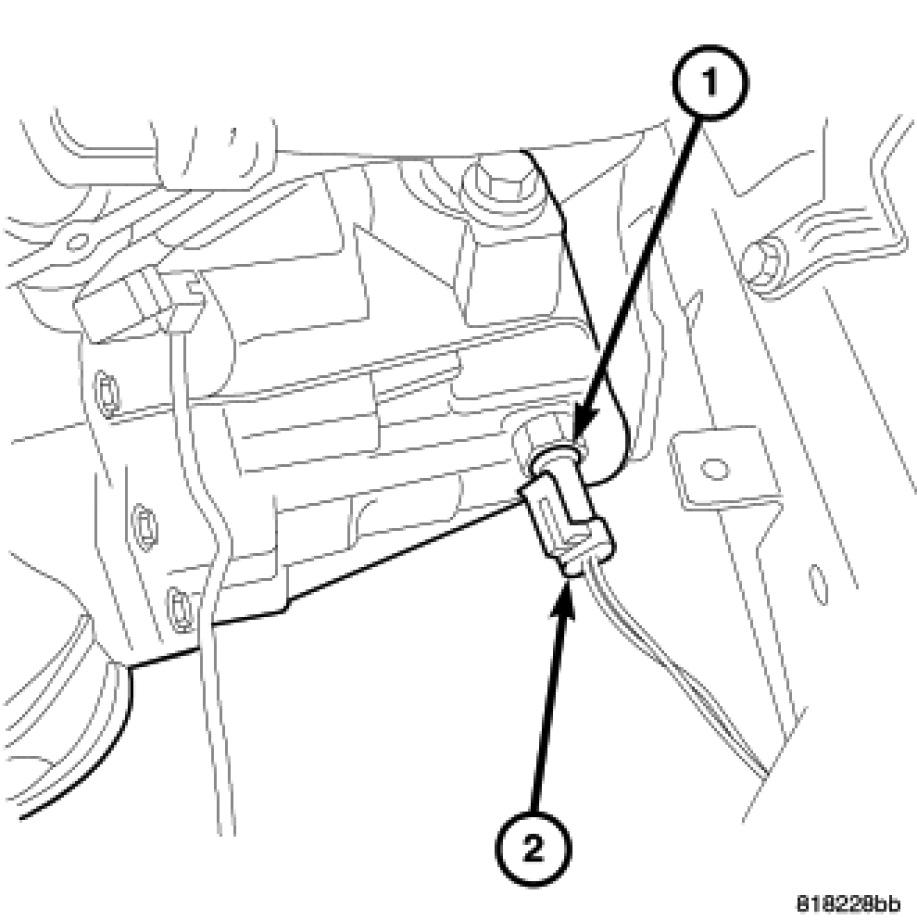

2. From bottom side of vehicle, disconnect back-up lamp switch connector (2).

3. Unscrew switch (2) from transaxle.
