Parking Brake Warning Switch: Locations

Component ID: 208
Component : SWITCH-PARKING BRAKE

Connector:
Name : SWITCH-PARKING BRAKE
Color : NATURAL
# of pins : 1




Pin Circuit Description
1 B25 20DG/WT PARK BRAKE SWITCH SENSE

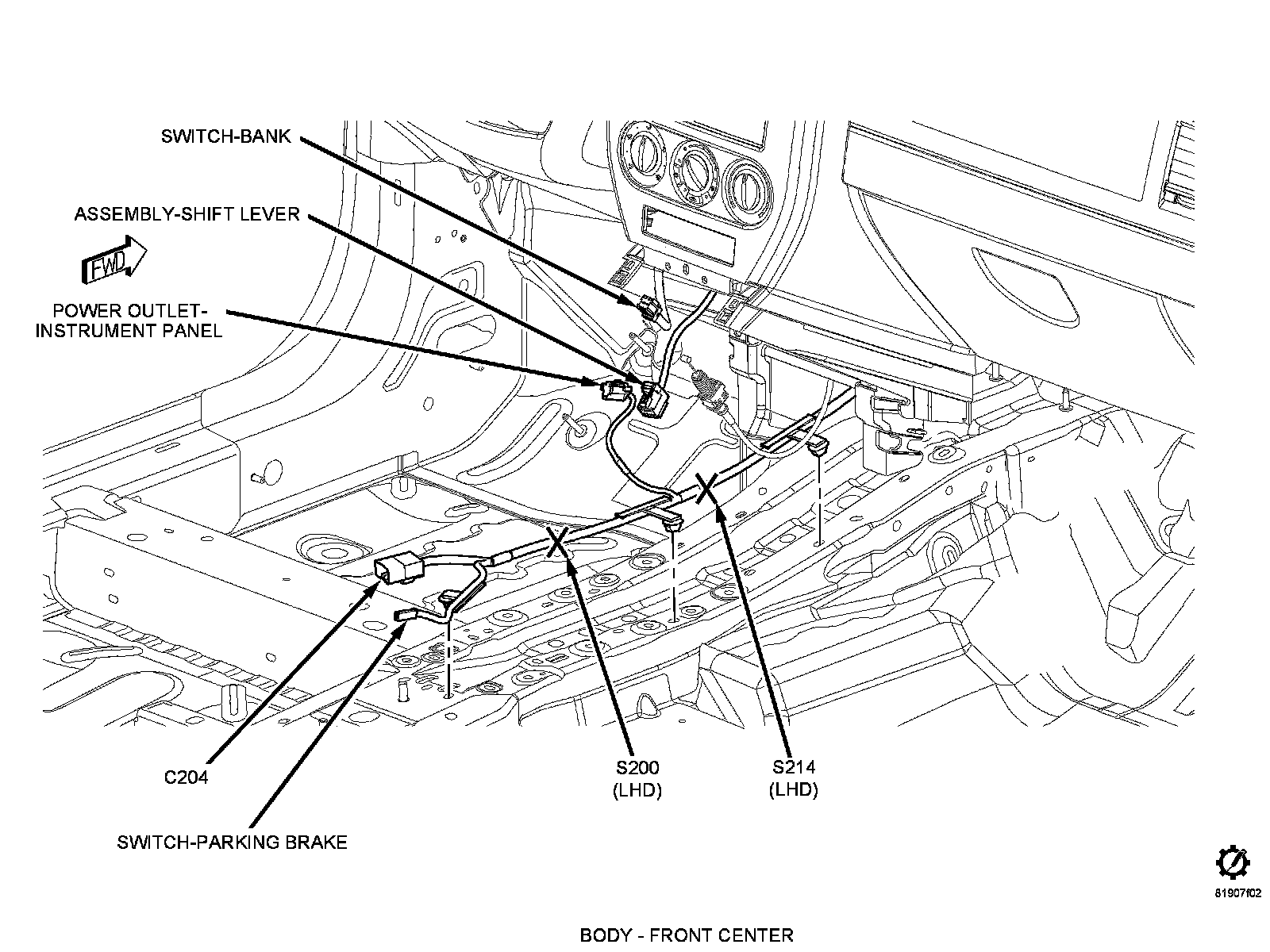

Component Location - 32
