Rear Engine Mount







INSTALLATION

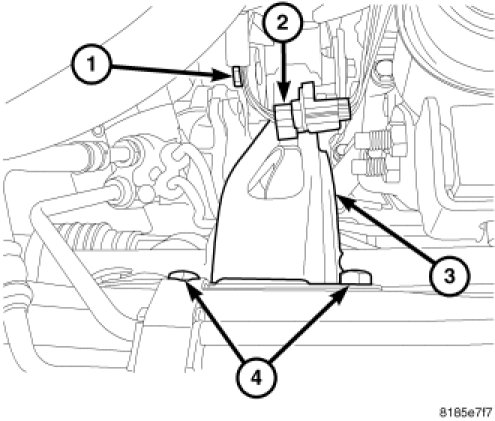

1. Position rear mount (3).
2. Install rear mount retaining bolts (4) and torque to 50 Nm (37 ft. lbs.).
3. Install rear mount through bolt (1) and torque to 75 Nm (55 ft. lbs.).
4. Install oxygen sensor connector (2) retainer to mount (3).
