Rear Door Trim Panel

REMOVAL
1. Disconnect and isolate battery negative cable.

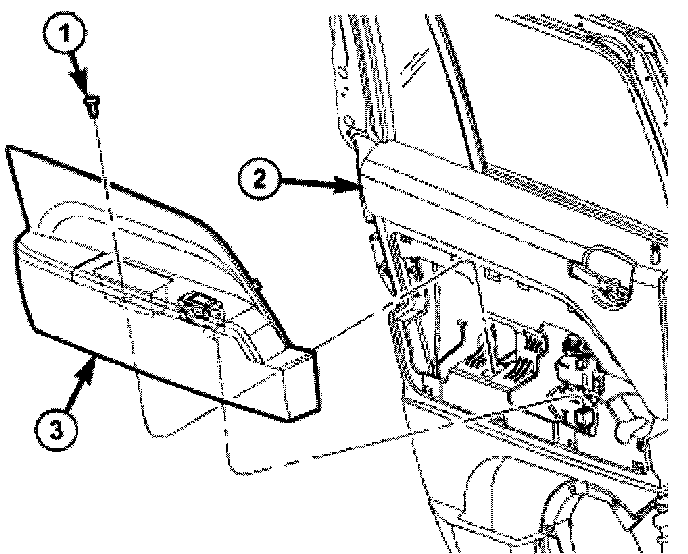

2. Remove the screw (1) from the pull handle.
3. Using a trim stick C-4755 or equivalent, separate the bolster (3) from the door module (2).






4. Disconnect the electrical connectors (2), if equipped.
5. Disconnect the tethers (1) and remove the bolster (3).

INSTALLATION






1. Connect the bolster tethers (1).
2. Connect the electrical connectors (2), if equipped.






3. Position the bolster (3) onto the door module (2) and seat the clips fully.
4. Install the screw (1).
