C-Pillar Trim Panel-Removal

REMOVAL

Compass and Patriot

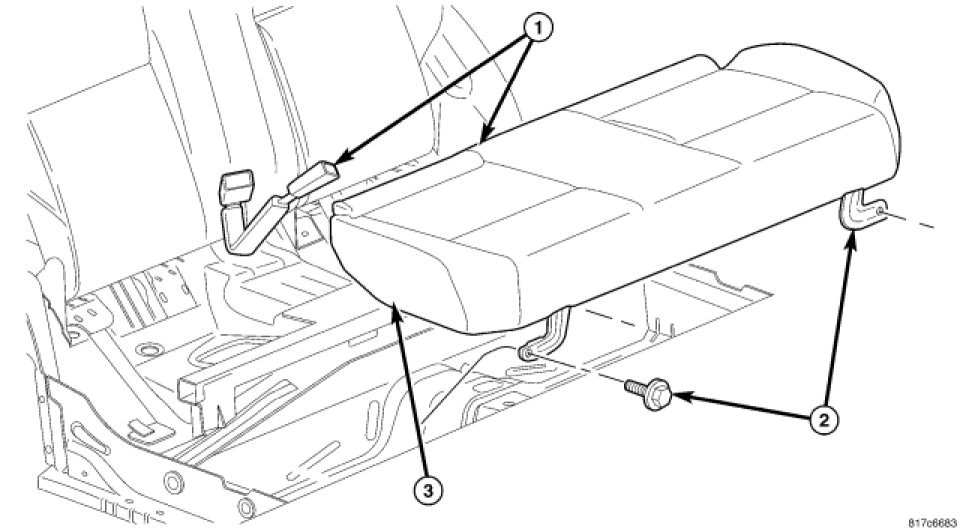

1. Remove the bolts (2) and remove the rear seat cushion (3), Seat Cushion - Removal.

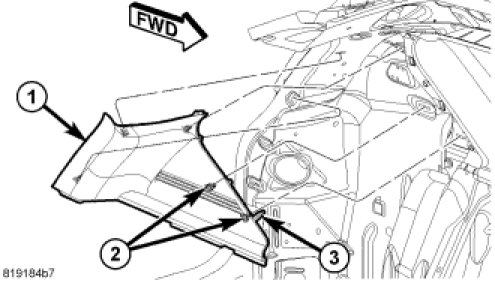

2. Remove the D-pillar trim (1), Removal.

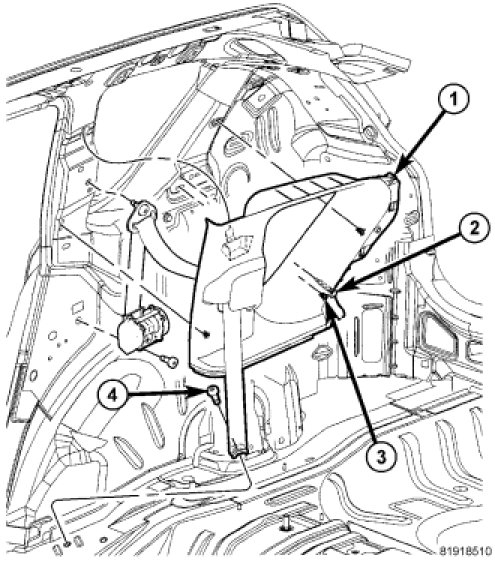

Compass





1. Remove the seat belt anchor bolt (4).
2. Using a trim stick C-4755 or equivalent, separate the retaining clips (3) and remove the C-pillar trim (1).
3. Pull the seat belt through the hole in the trim.

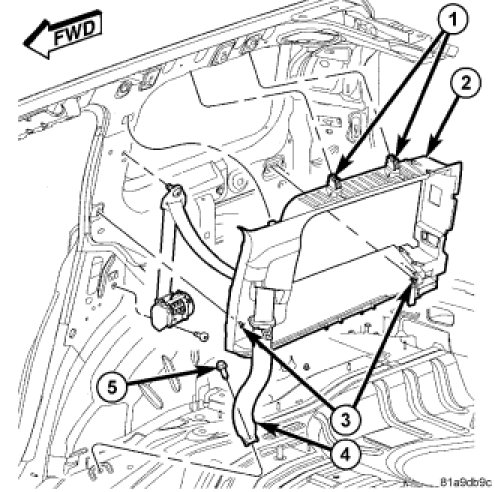

Patriot





1. Remove the seat belt anchor bolt (5).
2. Using a trim stick C-4755 or equivalent, separate the retaining clips (3) and remove the C-pillar trim (2).
3. Pull the seat belt (4) through the hole in the trim.
