Removal

REMOVAL





1. Disconnect and isolate battery negative cable.

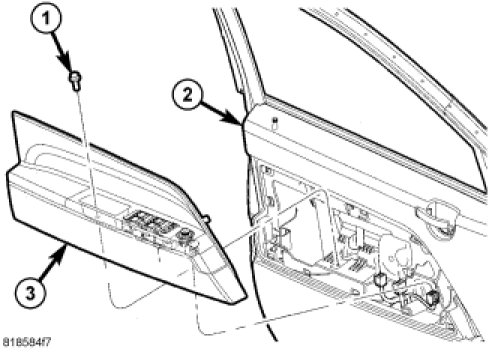

2. Remove the screw (1) from the pull handle.
3. Using a trim stick C-4755 or equivalent, separate the bolster (3) from the door module (2).

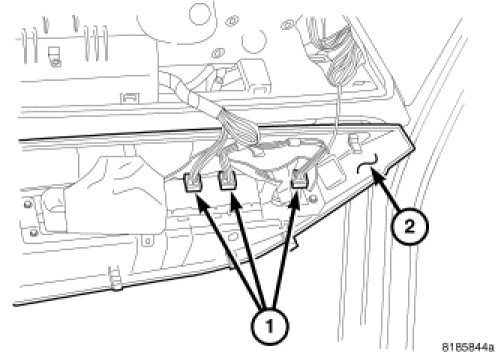

4. Disconnect the electrical connectors (1), if equipped.

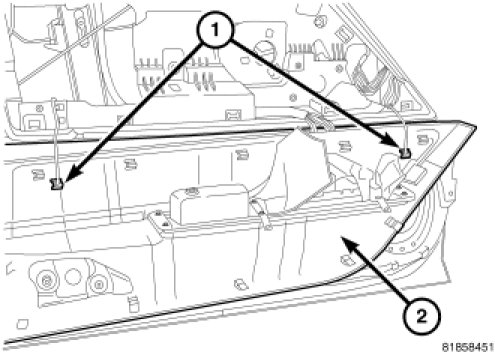

5. Disconnect the tethers (1) and remove the bolster (2).
