Body - Interior & Exterior: Liftgate: Striker-Latch: Removal

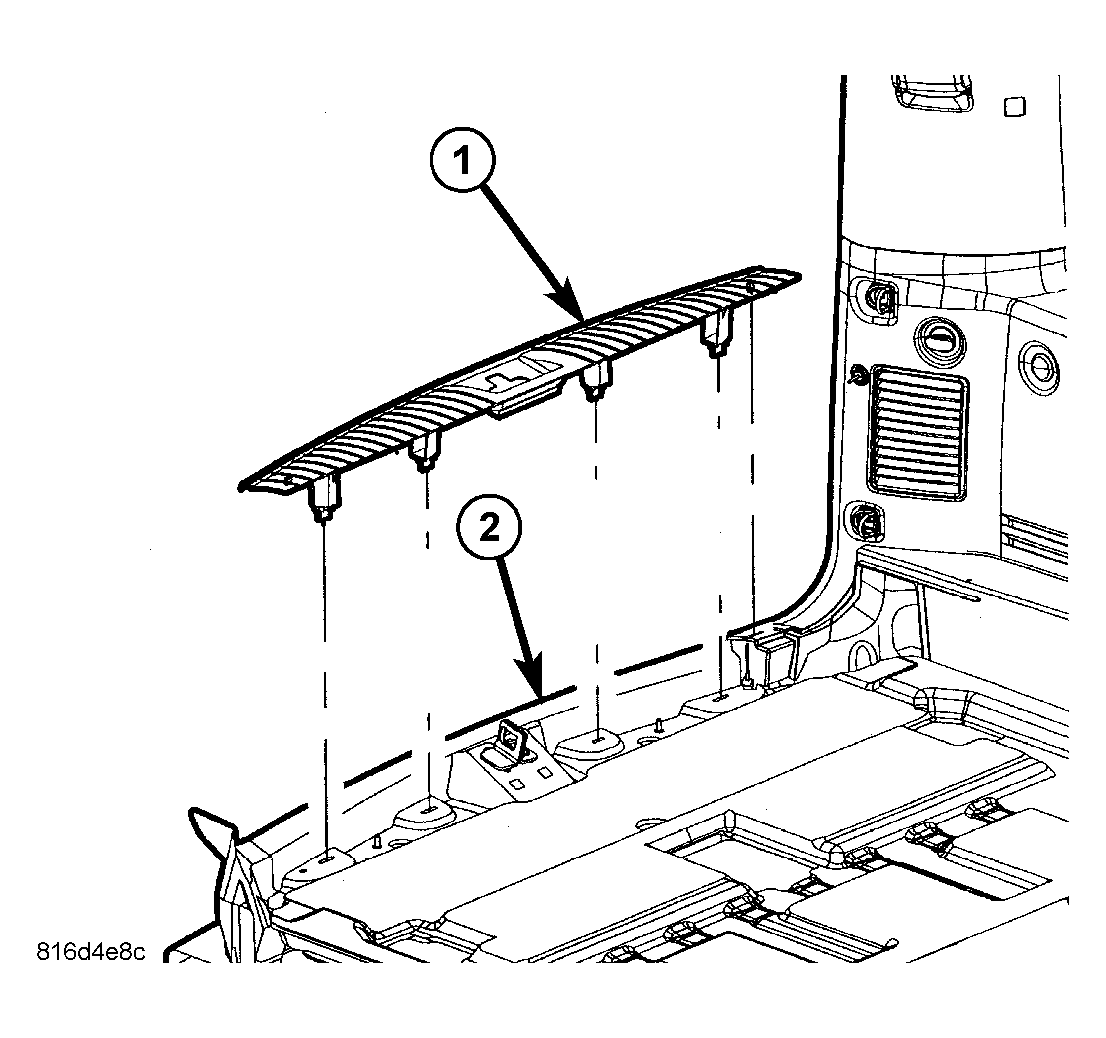

Fig 1: Remove/Install Scuff Plate

Courtesy of CHRYSLER LLC

1. Using a trim stick C-4755 or equivalent, disengage the retaining tabs that secure the liftgate scuff plate to the liftgate door sill and remove the scuff plate.

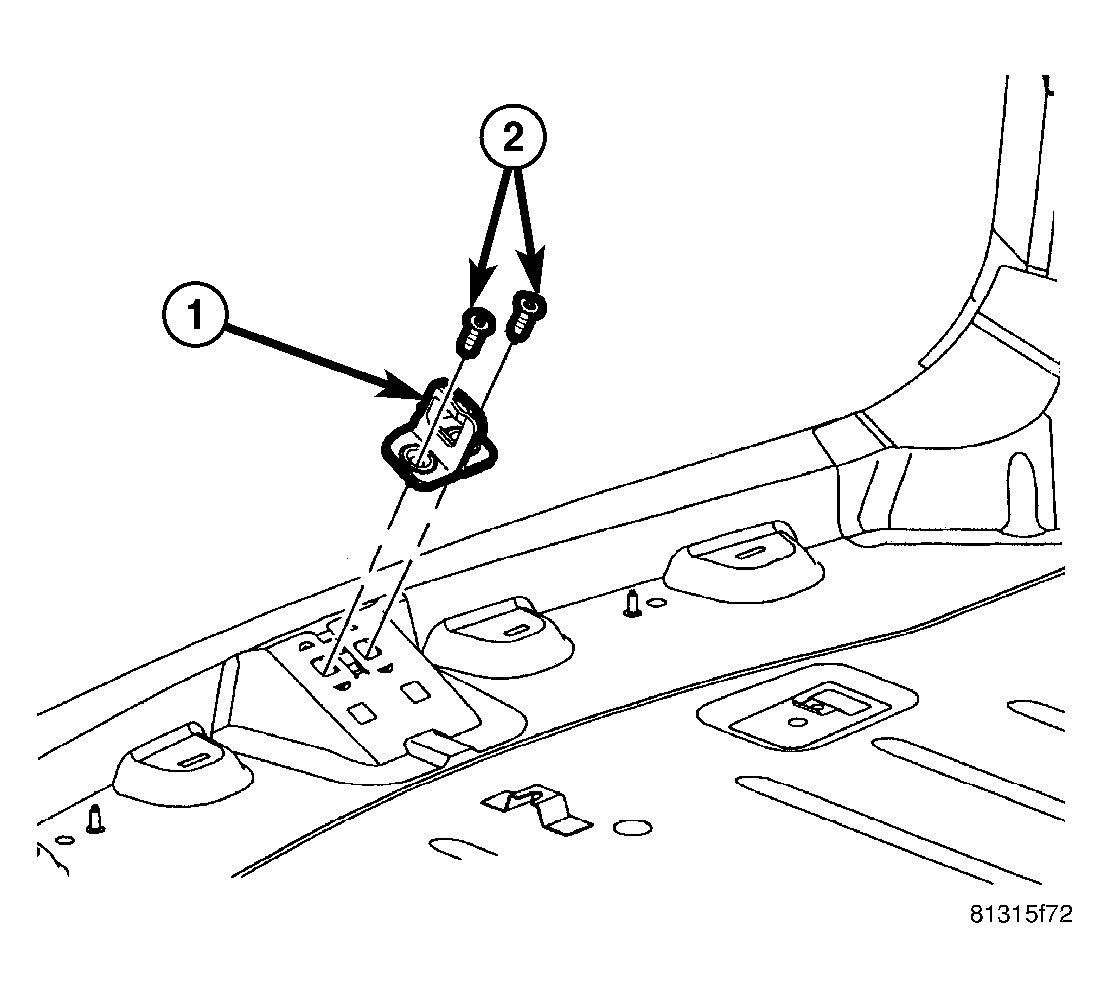

   Fig 2: Removing/Installing Striker

   Courtesy of CHRYSLER LLC
2. Mark the latch striker (1) location on the inside of the liftgate opening lower panel to aid reinstallation.
3. Remove the two screws (2) that secure the latch striker to the inside of the liftgate opening lower panel.
4. Remove the latch striker from the vehicle.
