Body - Interior & Exterior: Liftgate: Latch: Removal

Fig 1: Remove/Install Liftgate Trim Panel

Courtesy of CHRYSLER LLC

1. Disconnect and isolate the battery negative cable.
2. Remove the trim panel from the liftgate (1). See REMOVAL .

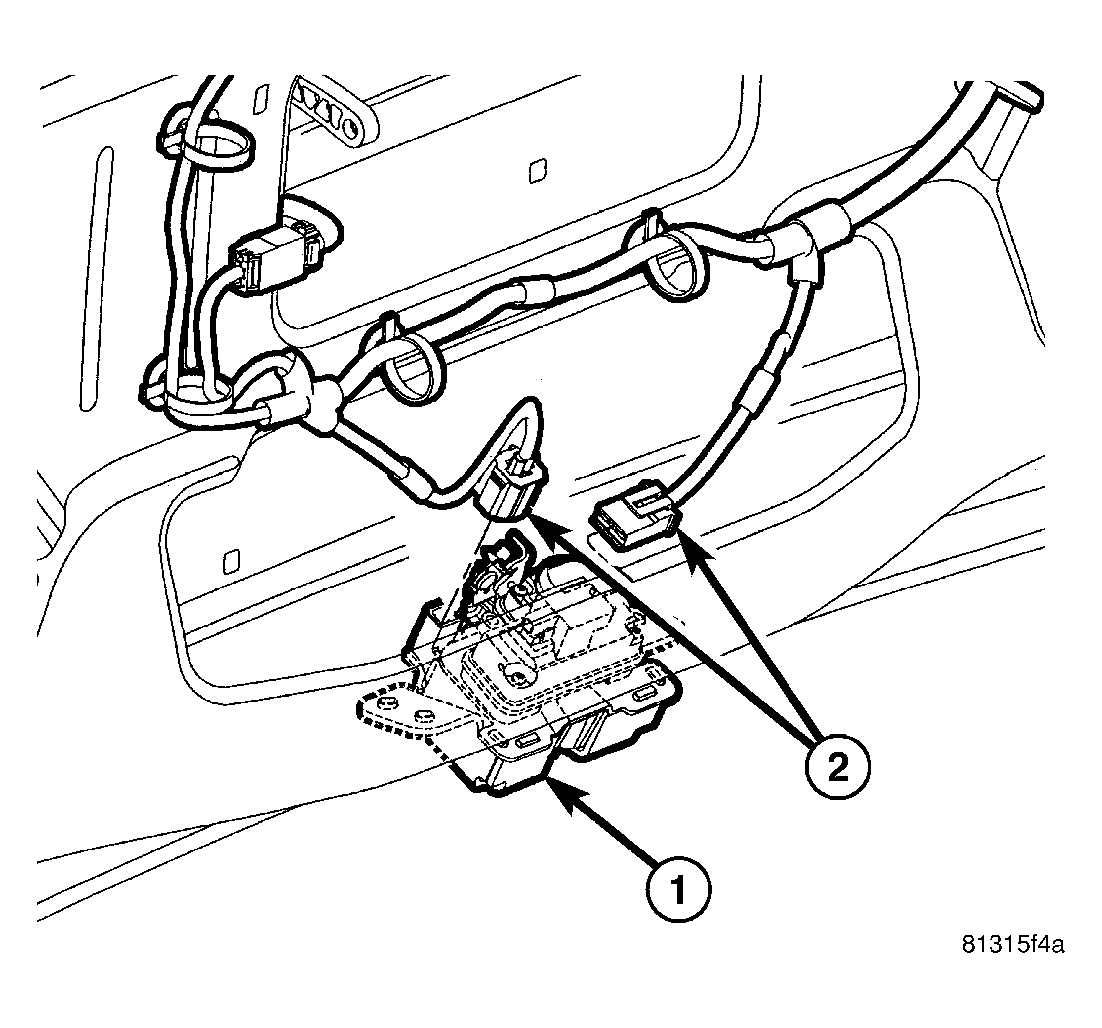

   Fig 2: Disconnecting/Connecting Latch Electrical Connectors

   Courtesy of CHRYSLER LLC
3. Position the watershield aside to gain access to the latch.
4. Disconnect the electrical connectors of the latch (2).

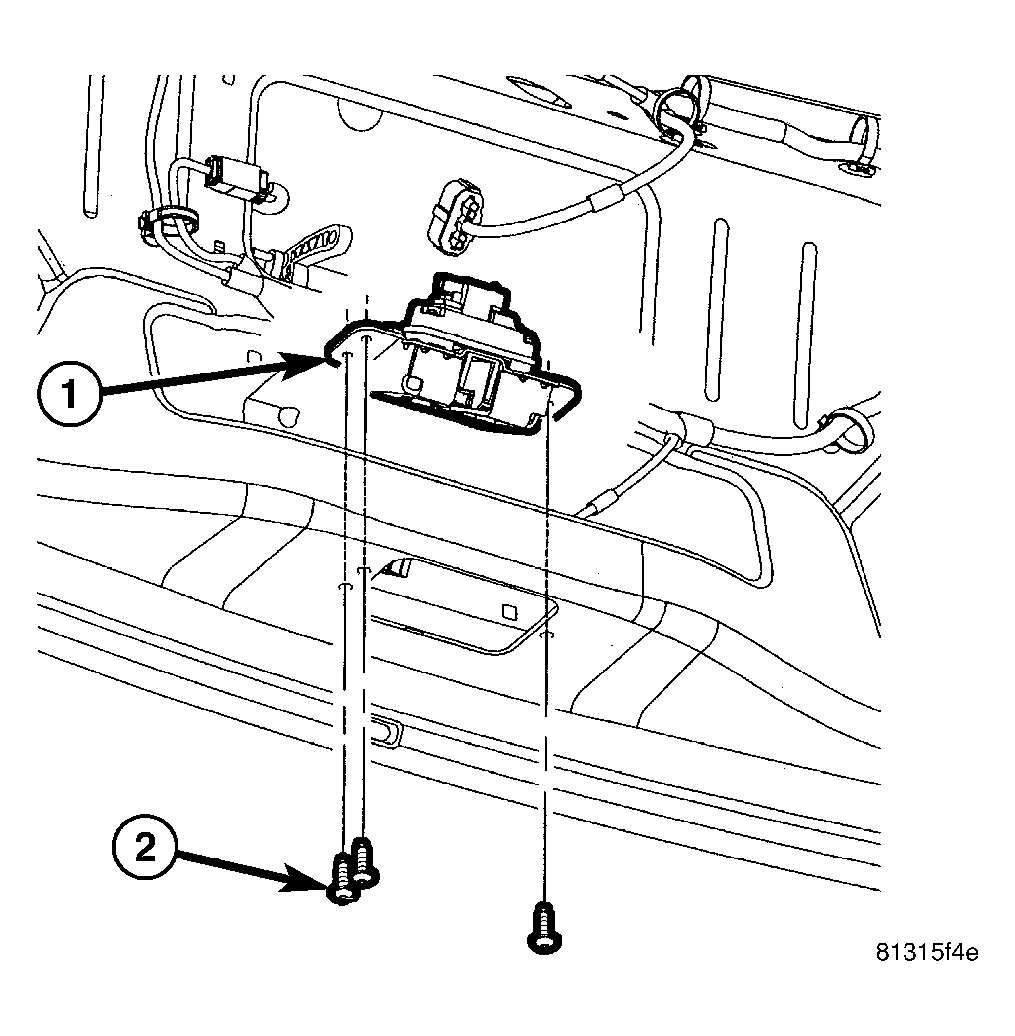

   Fig 3: Removing/Installing Latch

   Courtesy of CHRYSLER LLC
5. Disconnect the latch cable from the liftgate handle and separate the support clips.
6. Remove the three screws (2) that secure the latch (1) to the liftgate.
7. Remove the liftgate latch (1) from the vehicle.
