Body - Interior & Exterior: Liftgate: Glass: Removal

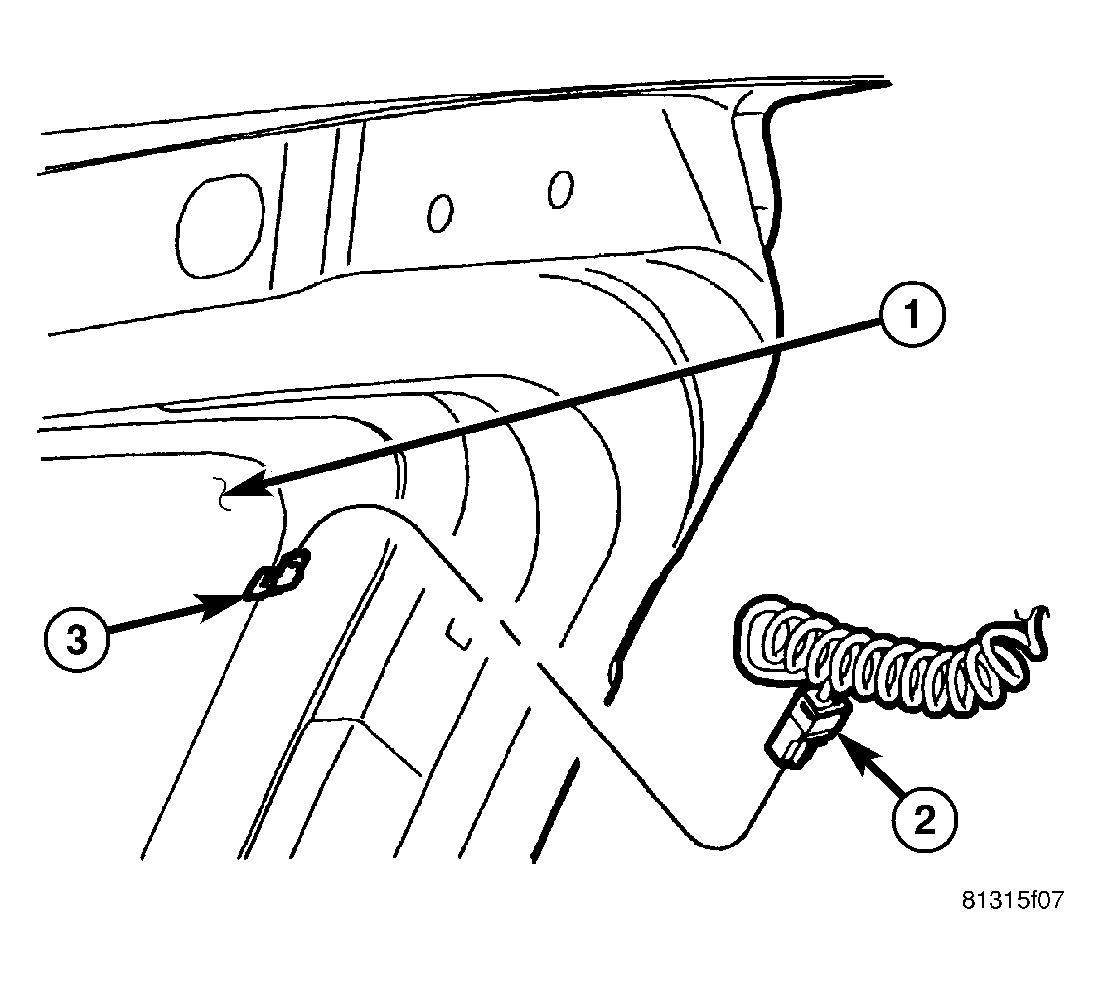

Fig 1: Glass Electrical Connector

Courtesy of CHRYSLER LLC

NOTE: Grand Cherokee shown in illustration, Commander similar.

1. Disconnect heated liftgate glass electrical connector (2).
   Fig 2: Identifying Liftgate Components

   Courtesy of CHRYSLER LLC
2. Open the liftgate glass (2) and support.
3. Disconnect glass support cylinders (1) at the lower ball studs, see REMOVAL .

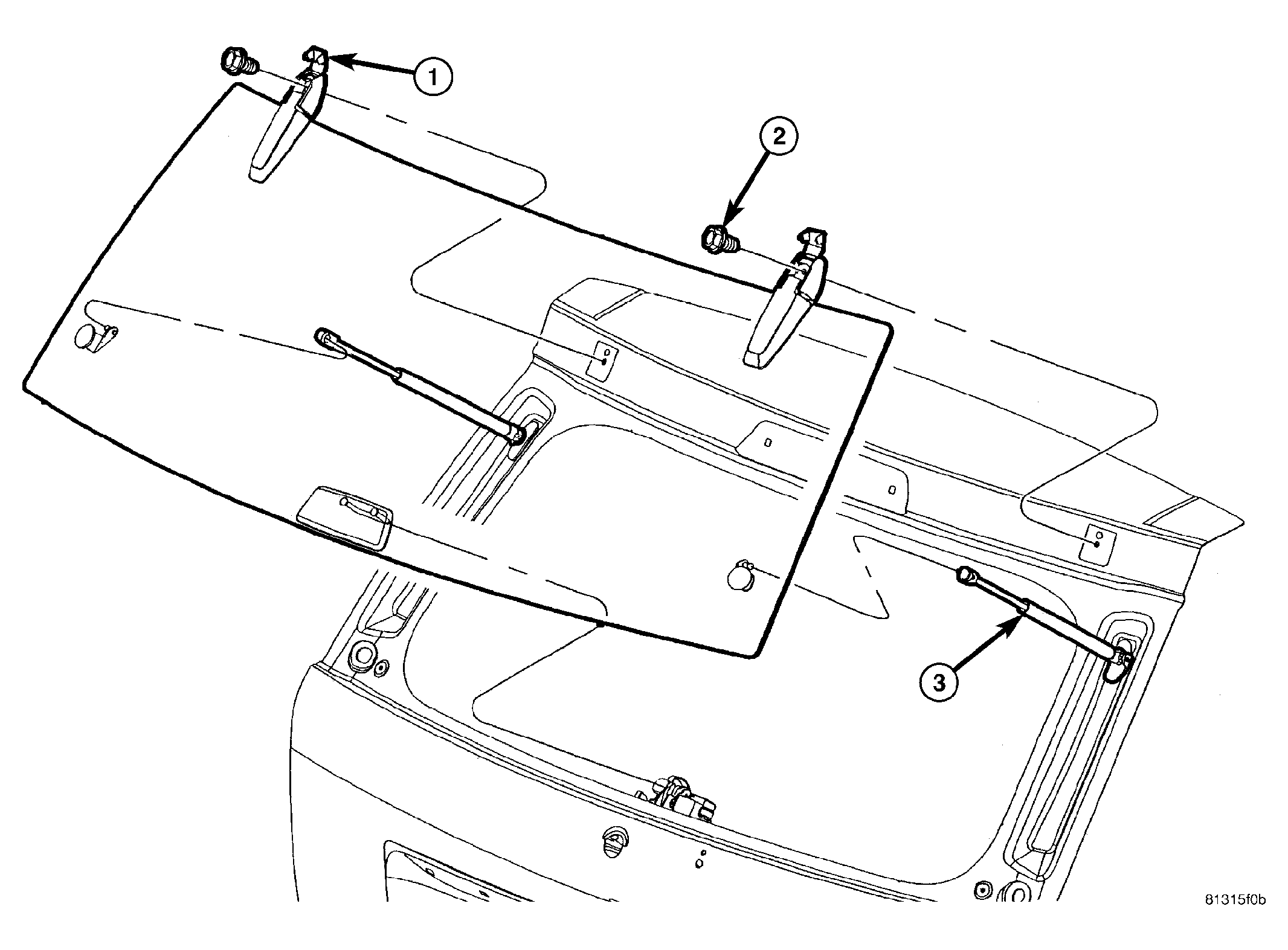

   Fig 3: Removing/Installing Liftgate Glass

   Courtesy of CHRYSLER LLC
   NOTE: Grand Cherokee shown in illustration, Commander similar.
4. Close the glass but not latch in the closed position.
5. Remove hinge covers and remove hinge bolts (2).
6. Remove the glass.
