Planetary GEARTRAIN

WARNING: This page is about a different variant/trim than selected.

Fig 1: Identifying Reaction Annulus And Carrier

Courtesy of CHRYSLER LLC

1 - THRUST BEARING NUMBER 8	5 - THRUST BEARING NUMBER 7
2 - THRUST BEARING NUMBER 9	6 - THRUST PLATE (SELECT)
3 - REACTION PLANETARY CARRIER	7 - THRUST BEARING NUMBER 6
4 - REACTION SUN GEAR	8 - REACTION ANNULUS

The planetary geartrain is located behind the 4C retainer/bulkhead, toward the rear of the transmission. The planetary geartrain consists of three primary assemblies:

Reaction (3, 4, 8).

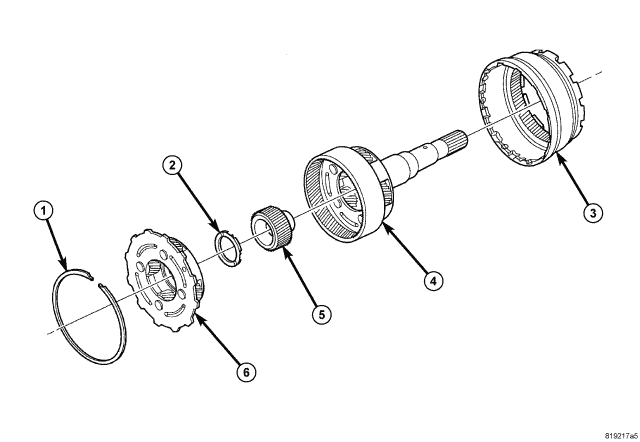

Fig 2: Planetary Geartrain Assembly

Courtesy of CHRYSLER LLC

1. Snap Ring	4. Input Planetary Carrier
2. Thrust Bearing No. 10	5. input Sun Gear
3. Input Annulus	6. Reverse Carrier

Reverse (6).
Input (3, 4, 5).
