Pressure Test Port Locations

WARNING: This page is about a different variant/trim than selected.

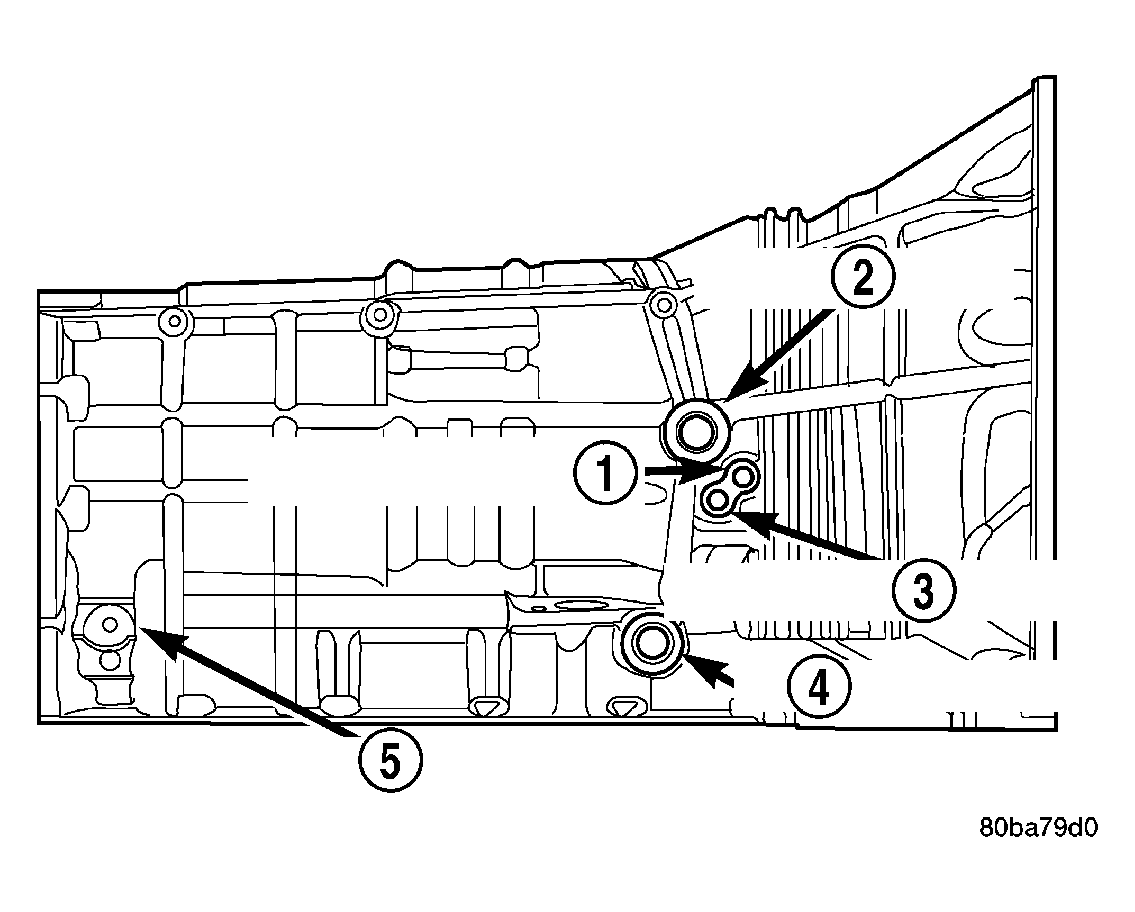

Fig 1: Torque Converter Pressure Locations

Courtesy of CHRYSLER LLC

1 - TCC RELEASE

2 - TO COOLER

3 - TCC APPLY

4 - FROM COOLER

5 - LINE PRESSURE SENSOR

Only two pressure ports are supplied on the transmission case. The torque converter clutch apply (3) and release (1) ports are located on the right side of the transmission case. See Fig 1.

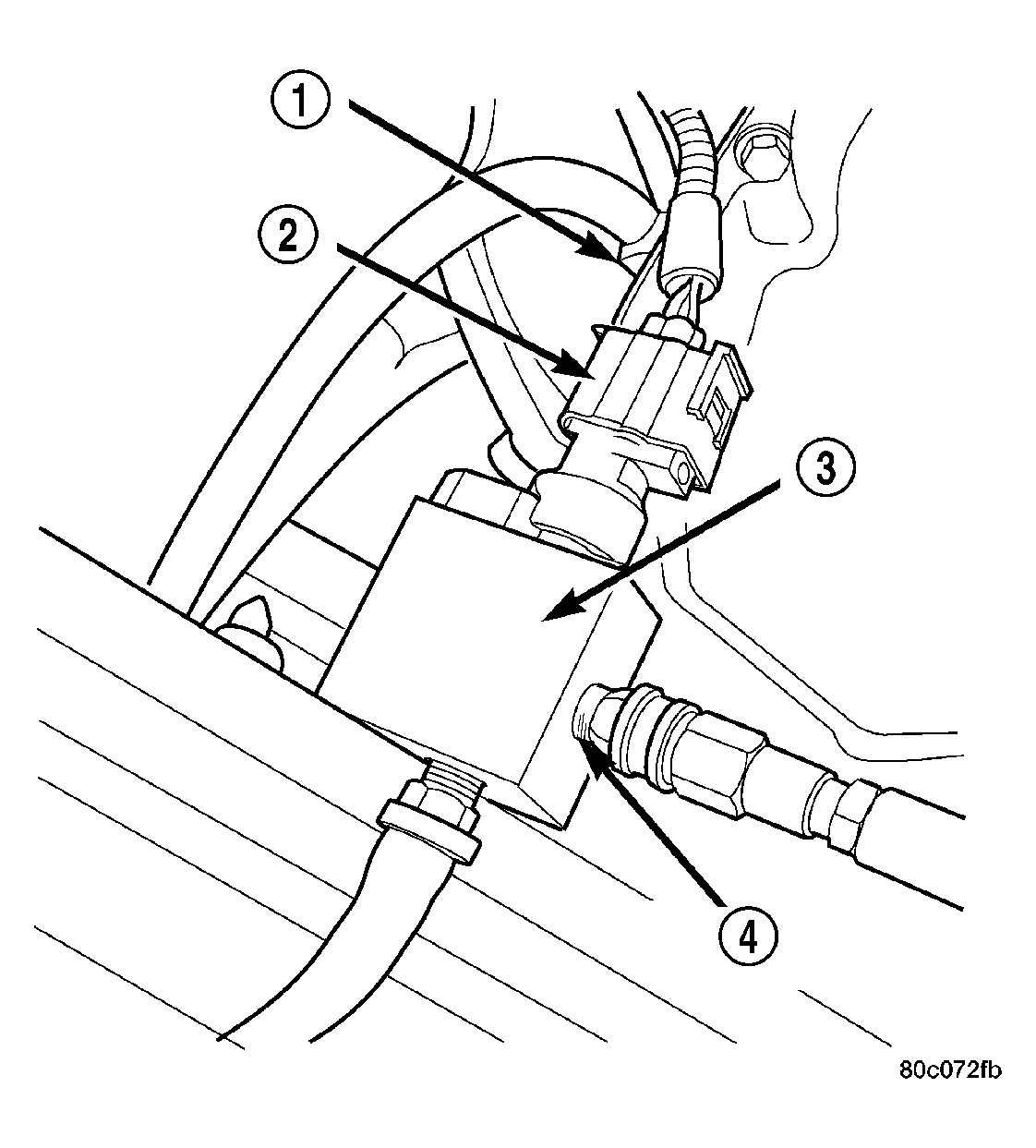

Fig 2: Line Pressure Adapter 8259

Courtesy of CHRYSLER LLC

1 - LINE PRESSURE SENSOR PORT

2 - LINE PRESSURE SENSOR

3 - TOOL 8259

4 - PRESSURE TAP

To determine the line pressure, there are two available methods. The scan tool can be used to read line pressure from the line pressure sensor. The second method is to install Line Pressure Adapter 8259 (3) into the transmission case and then install the pressure gauge and the original sensor (2) into the adapter. This will allow a comparison of the scan tool readings and the gauge reading to determine the accuracy of the line pressure sensor. The scan tool line pressure reading should match the gauge reading within ±10 psi. See Fig 2.
