Holding Clutches
WARNING: This page is about a different variant/trim than selected.

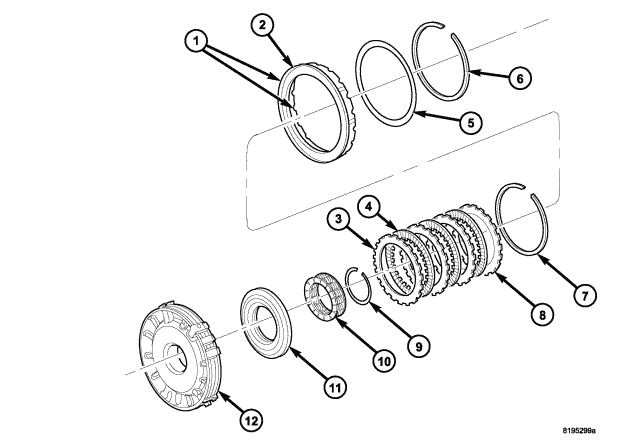

| 1 - SEALS | 8 - REACTION PLATE |
| 2 - 2C PISTON | 9 - SNAP-RING |
| 3 - 4C PLATE | 10 - RETURN SPRING |
| 4 - 4C DISC | 11 - 4C PISTON |
| 5 - 2C BELLEVILLE SPRING | 12 - 4C RETAINER/BULKHEAD |
| 6 - SNAP-RING | - |
| 7 - SNAP-RING (SELECT) | - |
| 1 - SNAP-RING (SELECT) | 8 - RETAINER |
| 2 - REACTION PLATE | 9 - SNAP-RING |
| 3 - DISC | 10 - OVERRUNNING CLUTCH |
| 4 - PLATE | 11 - SNAP-RING |
| 5 - L/R CLUTCH RETAINER | 12 - BLEED ORIFICE |
| 6 - PISTON | - |
| 7 - BELLEVILLE SPRING | - |
Three hydraulically applied multi-disc clutches are used to hold some planetary geartrain components stationary while the input clutches drive others. The 2C, 4C, and Low/Reverse clutches are considered holding clutches. The 2C and 4C clutches are located in the 4C retainer/bulkhead (12).
The Low/Reverse clutch is located at the rear of the transmission case.
