Pan-Engine Oil: Removal: Removal

WARNING: This page is about a different variant/trim than selected.

Fig 1: 5.7L Engine Appearance Cover

Courtesy of CHRYSLER LLC

Disconnect the negative battery cable.
Remove the engine cover (1).

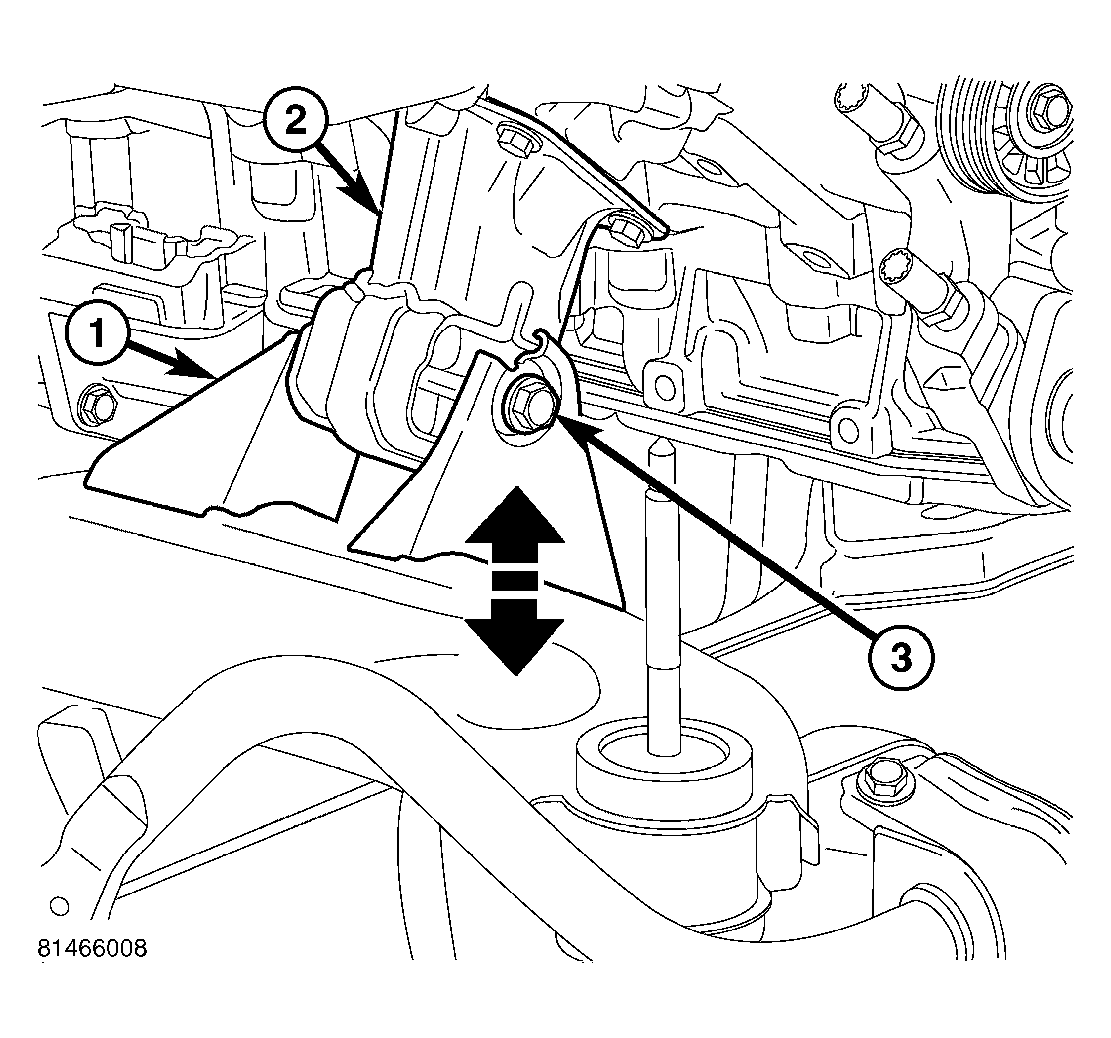

Fig 2: Engine Mount Bolt
Courtesy of CHRYSLER LLC
Remove the intake manifold. See REMOVAL .
Raise vehicle.
Remove both left and right side engine mount to frame bolts (3).
Drain engine oil and remove the oil filter.
Remove the engine oil dipstick and tube from the oil pan.
Lower the vehicle.

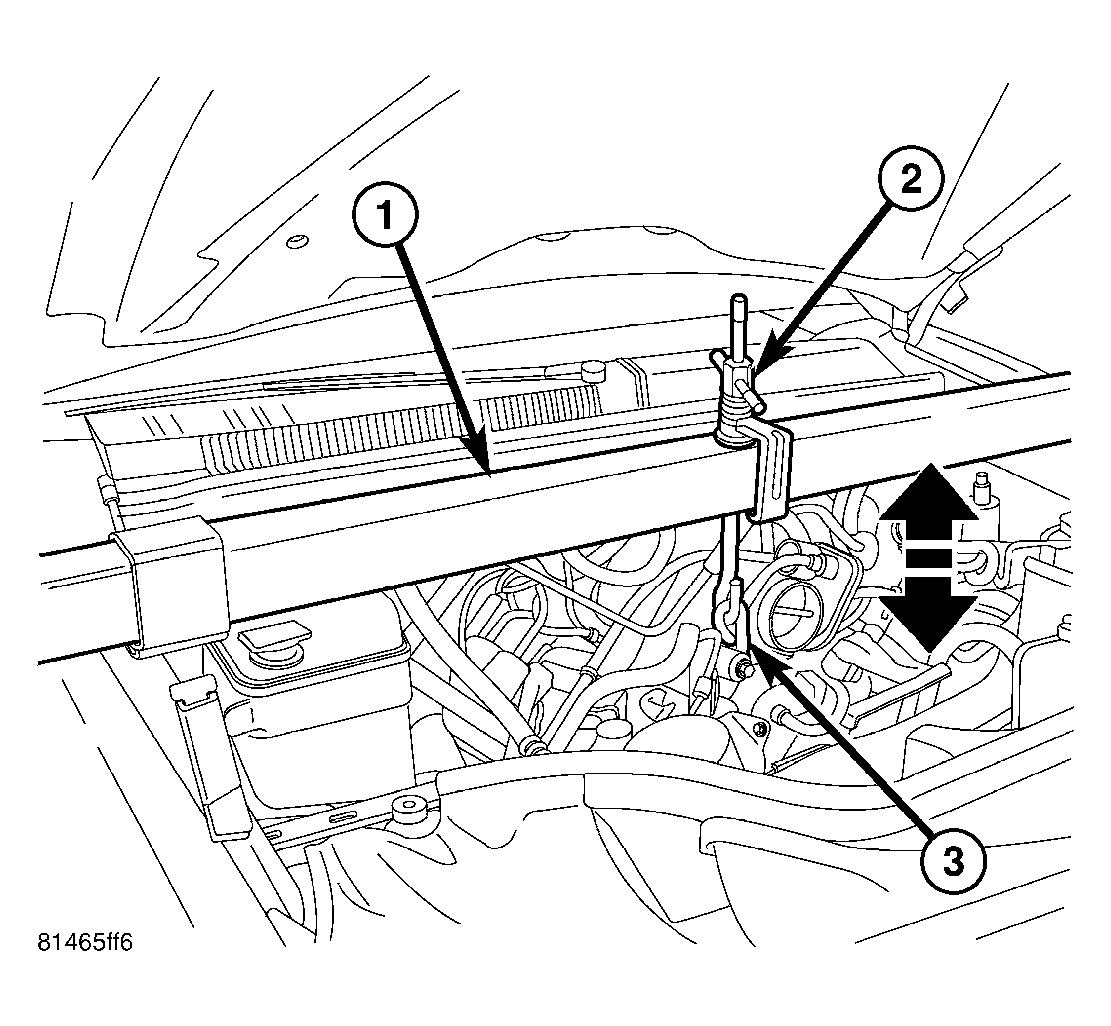

Fig 3: Engine Support Tool
Courtesy of CHRYSLER LLC
Install engine support fixture special tool # 8534 (1). Do not use the third leg.
Raise engine using special tool # 8534 to provide clearance to remove oil pan.
Raise the vehicle.
Remove the front axle. Refer to REMOVAL .

Fig 4: Structural Dust Cover
Courtesy of CHRYSLER LLC

1 - STRUCTURAL COVER

2 - BOLTS
Remove the structural dust cover (1). See REMOVAL .

Fig 5: Remove/Install Oil Pan To Transmission Bolts
Courtesy of CHRYSLER LLC

1 - BOLTS

NOTE: Do not pry on oil pan or oil pan gasket. Gasket is integral to engine windage tray and does not come out with oil pan.

NOTE: The horizontal M10 fasteners are 5 mm longer in length, and must be reinstalled in original locations.
Remove the M10 fasteners (1) (vertical and horizontal) from the rear of the oil pan to the transmission and engine.

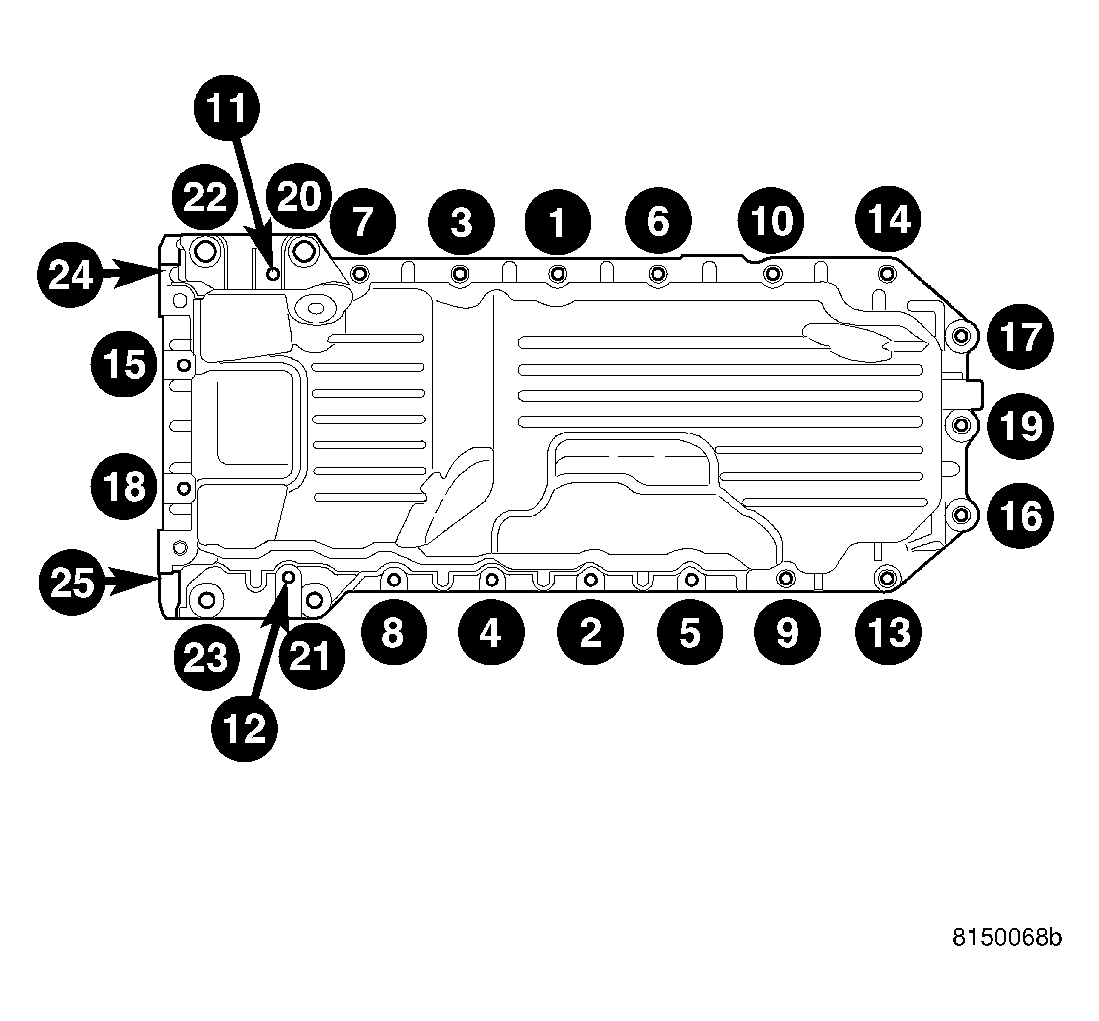

Fig 6: Oil Pan Torque Sequence - 5.7L
Courtesy of CHRYSLER LLC
Remove the oil pan mounting bolts using the sequence provided, and oil pan.
NOTE: When the oil pan is removed, a new oil pan gasket/windage tray assembly must be installed. The old gasket cannot be reused.
Discard the integral windage tray and gasket and replace.
