MDS Solenoid

WARNING: This page is about a different variant/trim than selected.
Fig 1: MDS Solenoids
GC0051334Courtesy of CHRYSLER LLC
  1. Disconnect the negative battery cable.
  2. Remove the intake manifold. See REMOVAL .
  3. Remove foam insulator pad (1) if necessary.
    Fig 2: MDS Solenoid(s), Wiring Harness Connectors & Hold Down Bolt
    GC0051335Courtesy of CHRYSLER LLC
  4. Remove wiring harness connectors (1) from the MDS solenoid(s) (2) that require removal.
  5. Remove hold down bolt (3) from MDS solenoid(s) (2).

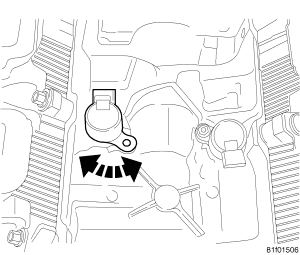

    Fig 3: MDS Solenoid Removal
    GC0051336Courtesy of CHRYSLER LLC
    CAUTION: Do not try to pry the solenoid out. This could lead to breakage and contamination of the lubrication system.
  6. Lightly tap on solenoid with a rubber mallet. Wiggle solenoid from side to side.
  7. Remove MDS solenoid(s) (3).
