Engine Gasket Surface Preparation

WARNING: This page is about a different variant/trim than selected.

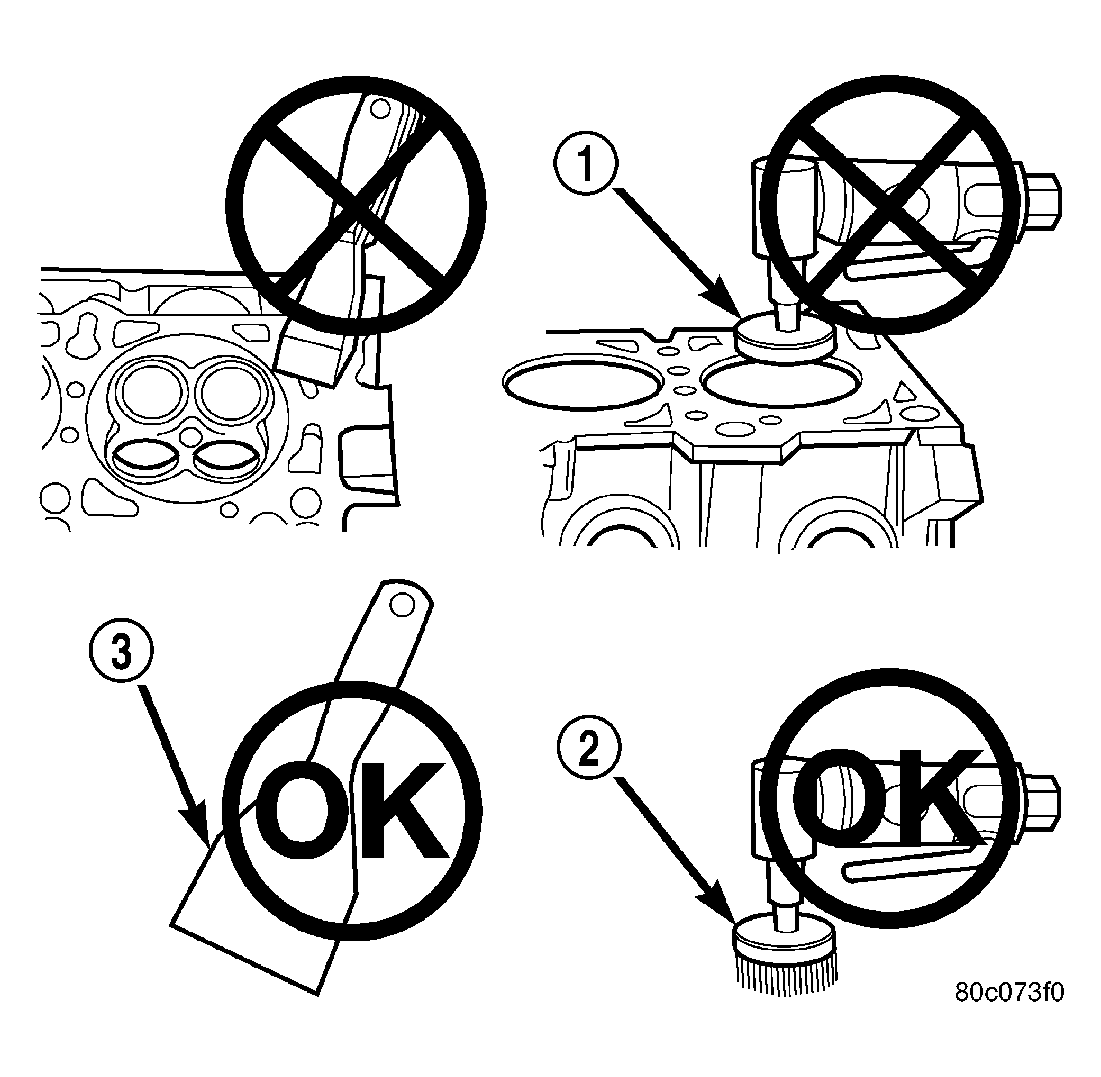

Fig 1: Proper Tool Usage for Surface Preparation

Courtesy of CHRYSLER LLC

To ensure engine gasket sealing, proper surface preparation must be performed, especially with the use of aluminum engine components and multi-layer steel cylinder head gaskets.

Never use the following to clean gasket surfaces:

Metal scraper (1).
Abrasive pad or paper (2) to clean cylinder block and head.
High speed power tool with an abrasive pad or a wire brush (3).

NOTE: Multi-Layer Steel (MLS) head gaskets require a scratch free sealing surface.

Only use the following for cleaning gasket surfaces:

Solvent or a commercially available gasket remover.
Plastic or wood scraper (4).
