Exhaust Manifold - Left

WARNING: This page is about a different variant/trim than selected.

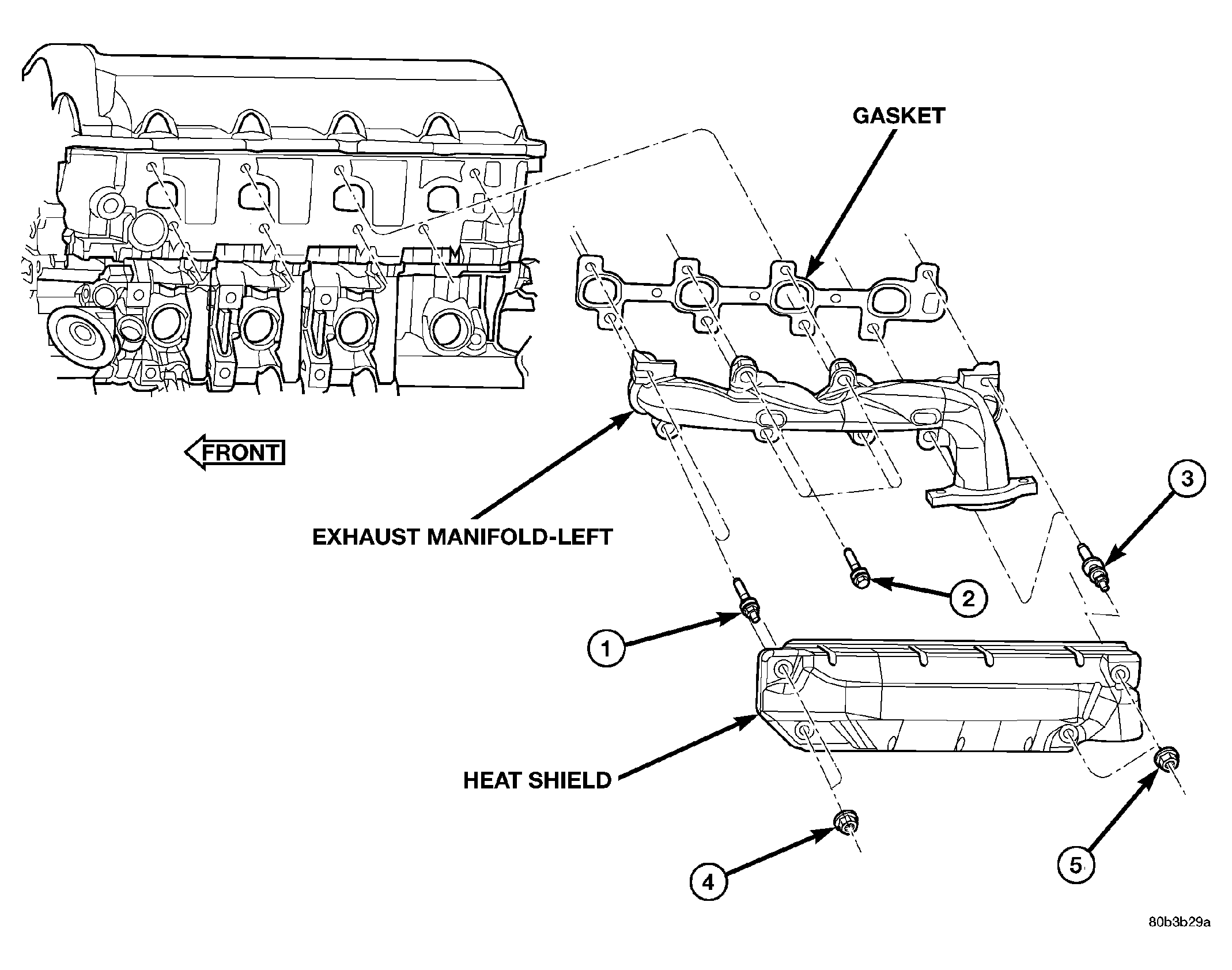

Fig 1: Exhaust Manifold-Left
GC0003933Courtesy of CHRYSLER LLC
ITEM DESCRIPTION TORQUE ITEM DESCRIPTION TORQUE
1 Stud (Qty 2) 25 N.m (18 ft. lbs.) 4 Nut (Qty 2) 8 N.m (72 in. lbs.), then loosen 45 degrees
2 Bolt (Qty 4) 5 Nut (Qty 2)
3 Stud (Qty 2)
  1. Install exhaust manifold and gasket from below engine compartment.
  2. Install lower exhaust manifold fasteners (1,2,3). DO NOT tighten until all fasteners are in place.
  3. Lower vehicle and install upper exhaust manifold fasteners (1,2,3,). Tighten all manifold bolts starting at center and working outward to 25 N.m (18 ft. lbs.).
    CAUTION: Over tightening heat shield fasteners, may cause shield to distort and/or crack.
  4. Install exhaust manifold heat shield. Tighten fasteners (4,6) to 8 N.m (72 in. lbs.), then loosen 45 degrees.
  5. Install air cleaner housing and tube.
  6. Connect exhaust pipe to manifold.
  7. Connect negative cable to battery.
